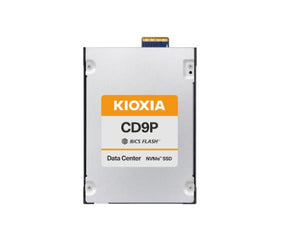

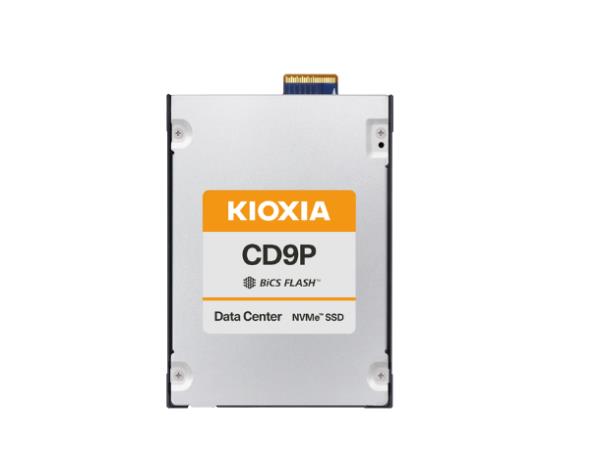

Kioxia KCD9DPJE7T68 E3.S 7.68TB PCIe BiCS FLASH TLC Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Kioxia KCD9DPJE7T68 is a 7.68 TB E3.S solid state drive featuring BiCS FLASH TLC memory and a PCI Express interface, with maximum 4 KB random read performance of 2,600K IOPS and random write performance of 450K IOPS. It supports 1 drive write per day endurance, operates at temperatures up to 75°C, has a mean time to failure of up to 2.5 million hours depending on operating temperature, requires 12 V and 3.3 V power inputs, and weighs 110 g, with country of origin and TAA compliance available upon inquiry.
Specifications
Model Number: KCD9DPJE7T68
Brand: Kioxia
Alt Part Number(s): KCD9DPJE7T68
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD9DPJE7T68
Hard Drive / Size: E3.S
SSD Capacity: 7.68 TB
Flash Type: BiCS FLASH TLC
Hard Drive / Interface Type: PCI Express
Max 4KB Random Read: 2600K IOPS
Max 4KB Random Write: 450K IOPS
Power / Device Type: Power Supply
Power / Voltage Required: 12 V +/- 10%; 3.3 V +/- 15%
Width: 76 +/- 0.25 mm
Depth: 7.5 +0.2 / -0.5 mm
Height: 112.75 +/- 0.4 mm
Weight: 110 g
Features: MTTF: 2,500,000 hours @ 0 to 50 degrees Celsius; 2,000,000 hours @ 0 to 55 degrees Celsius
Min Operating Temperature: 0 degrees Celsius
Max Operating Temperature: 75 degrees Celsius
Endurance: 1 DWPD
COO: Inquire
TAA Compliance: Inquire
UNSPSC Code: 43201830
