Description
Overview

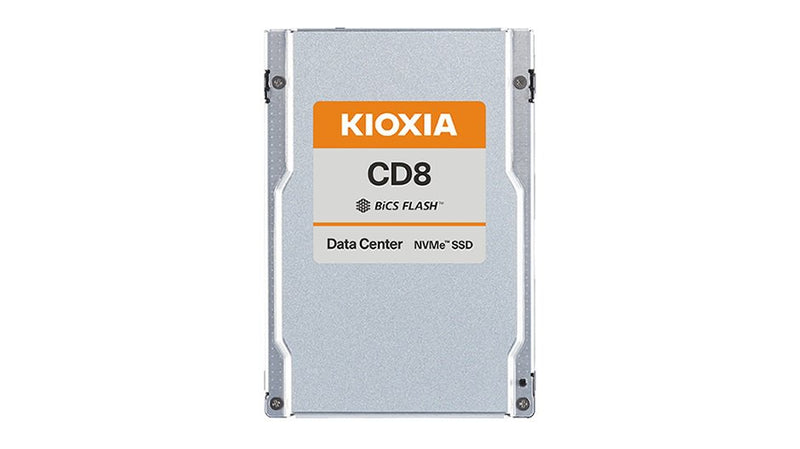

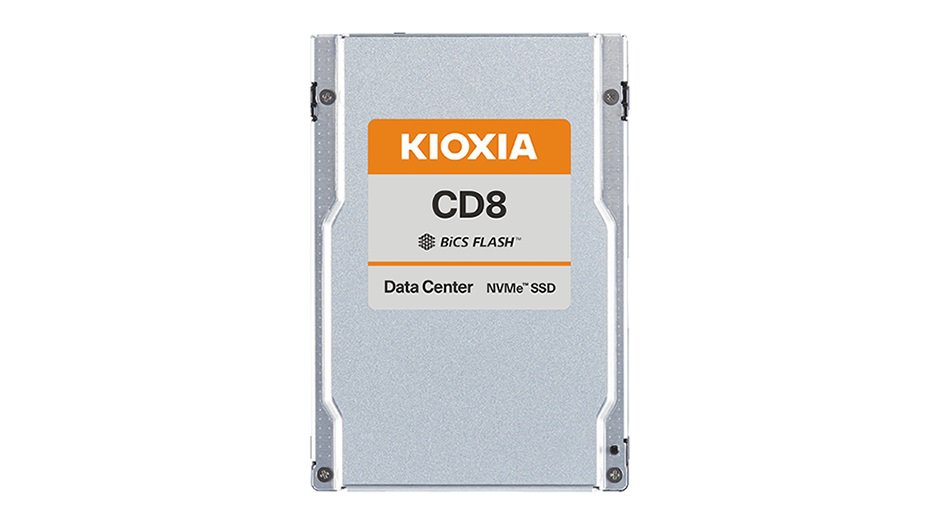

Kioxia KCD8DVUG3T20 CD8-V Series 3,200 GB PCIe 4.0, NVMe 1.4 BiCS Flash TLC Solid State Drive
Specifications
Model Number: KCD8DVUG3T20
Brand: Kioxia
Alt Part Number(s): KCD8DVUG3T20
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD8DVUG3T20
Capacity: 3200 GB
Hardware Encryption: Yes
NAND Flash Memory Type: 3D triple-level cell (TLC)
Form Factor: 2.5"
Interface: PCIe 4.0 x4 (NVMe)
Drive Class: Data Center, Mixed Use
Features: 112-layer 3D BiCS FLASH, power loss data protection, End-to-end data protection, Power Loss Protection (PLP), single port, NVMe 1.4
Drive Writes Per Day (DWPD): 3
Internal Data Rate: 7200 MBps (read) / 3800 MBps (write)
Maximum 4KB Random Write: 340000 IOPS
Maximum 4KB Random Read: 1250000 IOPS
MTBF: 2,500,000 hours
24x7 Operation: Yes
Interfaces: 1 x PCI Express 4.0 x4 (NVMe)
Compatible Bay: 2.5"
Power Consumption: 14 Watt (active (typical)) ¦ 5 Watt (idle)
Min Operating Temperature: 32 °F
Max Operating Temperature: 167 °F
Min Storage Temperature: -40 °F
Max Storage Temperature: 185 °F
Humidity Range Operating: 5 - 95% RH
Shock Tolerance (operating): 1000 g @ 0.5 ms
Vibration Tolerance (operating): 2.17 gRMS @ 5-800 Hz
