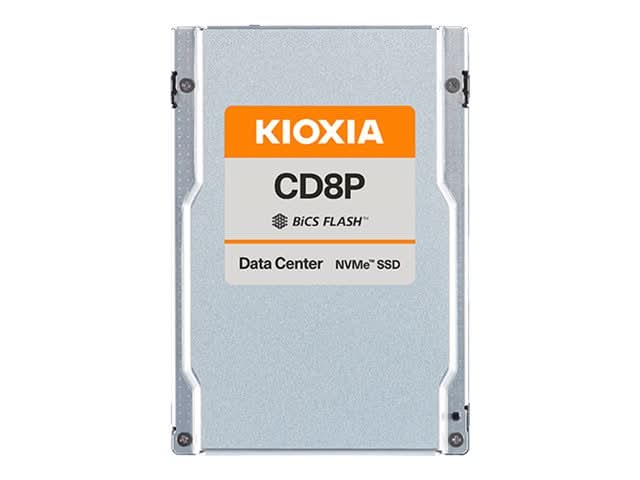

Kioxia KCD81PUG7T68 CD8P-R 7.68TB 2.5-in PCIe 5.0 NVMe Internal SSD
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The KCD81PUG7T68 2.5-inch NVMe SSD manufactured by Kioxia as part of their CD8P-R Series. It delivers 7.68TB of high-performance storage with PCIe 5.0 x4 interface, BiCS FLASH TLC memory, up to 12,000 MB/s sequential read, 5,500 MB/s sequential write, 2,000,000/200,000 IOPS random read/write, 1 DWPD endurance, and enterprise-grade reliability with 2,500,000 hours MTTF.
Specifications
Model Number: KCD81PUG7T68
Brand: Kioxia
Alt Part Number(s): KCD81PUG7T68
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD81PUG7T68
Series: CD8P-R
Storage Capacity: 7.68TB
Form Factor: 2.5-inch, 15mm thickness
Interface: PCIe 5.0, NVMe 2.0
Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)
Flash Memory Type: BiCS FLASH TLC
Sustained 128 KiB Sequential Read: 12,000 MB/s
Sustained 128 KiB Sequential Write: 5,500 MB/s
Sustained 4 KiB Random Read: 2,000,000 IOPS
Sustained 4 KiB Random Write: 200,000 IOPS
Supply Voltage: 12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (Active): 21 W typ.
Power Consumption (Ready): 5 W typ.
MTTF: 2,500,000 hours
Drive Writes Per Day (DWPD): 1
Temperature (Operating): 0°C to 73°C
Temperature (Non-operating): -40°C to 85°C
Humidity (Operating): 5 % to 95 % R.H.
Vibration (Operating): 21.27 m/s² (2.17 gRMS) (5 to 800 Hz)
Shock (Operating): 9.8 km/s² (1,000 G) (0.5 ms)
