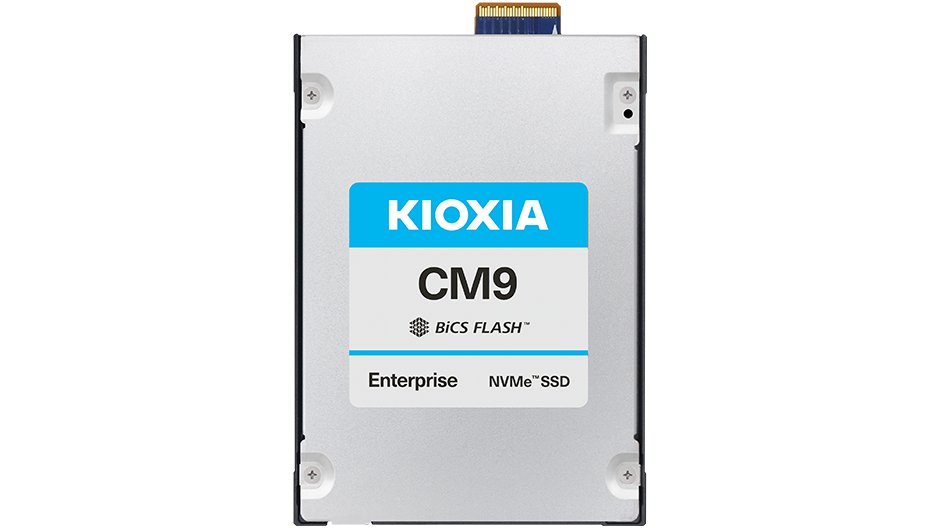

Kioxia Enterprise Series KCM9DRJE7T68 7.68TB PCIe 5.0 NVMe 2.0 Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Kioxia KCM9DRJE7T68, Kioxia series, is a 7.68 TB E3.S solid state drive featuring PCIe 5.0 and NVMe 2.0, with BiCS FLASH TLC, up to 14,800 MB/s sequential read, 10,000 MB/s sequential write, 3,400K random read IOPS, and 500K random write IOPS. It operates at 12 V and 3.3 V, consumes 25 W typical active power, supports 1 DWPD, and measures 7.5 mm thick by 76 mm wide by 112.75 mm long with an operating temperature range of 0 °C to 75 °C.
Specifications
Model Number: KCM9DRJE7T68
Brand: Kioxia
Alt Part Number(s): KCM9DRJE7T68
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCM9DRJE7T68
Capacity: 7.68 TB
Form Factor: E3.S
Interface: PCIe® 5.0, NVMe™ 2.0
Maximum Interface Speed: 128 GT/s (PCIe® Gen5 single x4, dual x2)
Flash Memory Type: BiCS FLASH™ TLC
Sustained 128 KiB Sequential Read: 14,800 MB/s
Sustained 128 KiB Sequential Write: 10,000 MB/s
Sustained 4 KiB Random Read: 3,400K IOPS
Sustained 4 KiB Random Write: 500K IOPS
Supply Voltage: 12 V ± 10 %; 3.3 V ± 15 %
Power Consumption (Active): 25 W typ.
Power Consumption (Ready): 5 W typ.
MTTF: 2,500,000 hours @ 0 °C to 50 °C; 2,000,000 hours @ 0 °C to 55 °C
DWPD: 1
Thickness: 7.5 mm +0.2 / -0.5 mm
Width: 76 mm ± 0.25 mm
Length: 112.75 mm ± 0.4 mm
Weight: 110 g Max
Temperature (Operating): 0 °C to 75 °C
Temperature (Non-operating): -40 °C to 85 °C
Humidity (Operating): 5 % to 95 % R.H.
Vibration (Operating): 21.27 m/s² {2.17 Grms} (5 Hz to 800 Hz)
Shock (Operating): 9.8 km/s² {1,000 G} (0.5 ms)
