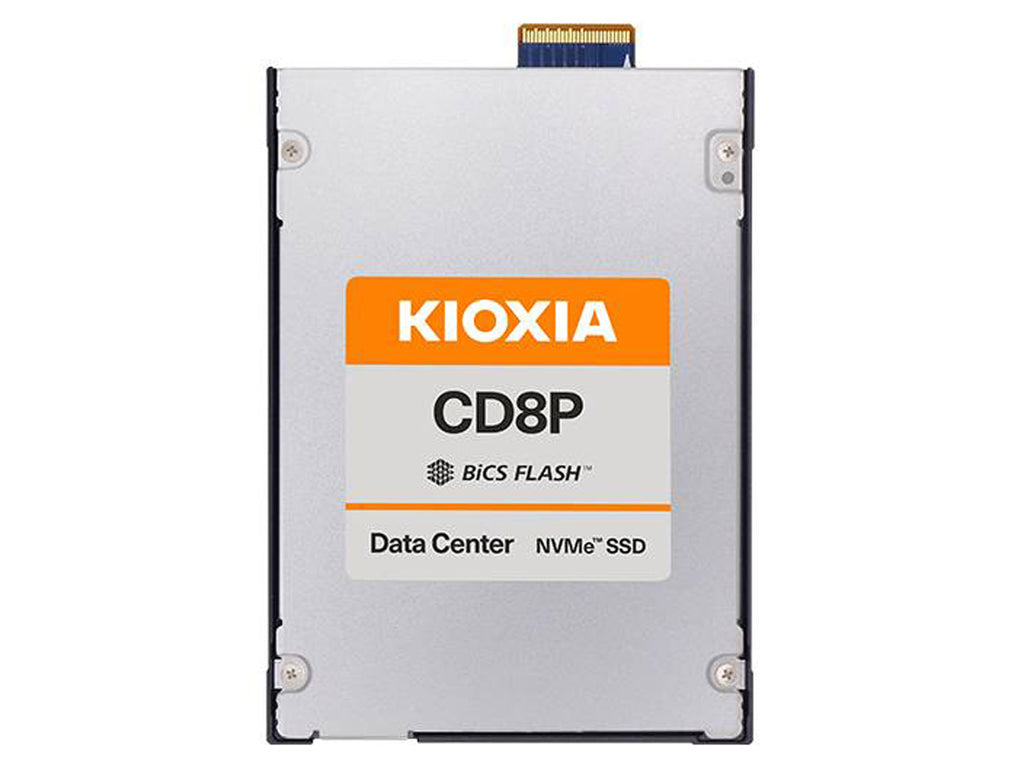

Kioxia CD8P-V KCD8DPJE3T20 3.2TB E3.S PCIe Gen5 12/5.5 GBps RW Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
Kioxia CD8P-V KCD8DPJE3T20 is a 3.2 TB E3.S PCIe Gen5 solid state drive delivering 12 GBps read and 5.5 GBps write performance for high demand enterprise storage. It features BiCS FLASH TLC, up to 1.9M read and 400K write IOPS, 3 DWPD endurance, and efficient power usage for reliable data center operation.
Specifications
Model Number: KCD8DPJE3T20
Brand: Kioxia
Alt Part Number(s): KCD8DPJE3T20
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD8DPJE3T20
Capacity: 3.2 TB
Form Factor: E3.S
Interface: PCIe 5.0, NVMe 2.0
Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)
Flash Memory Type: BiCS FLASH TLC
Sustained 128 KiB Sequential Read: 12,000 MB/s
Sustained 128 KiB Sequential Write: 5,500 MB/s
Sustained 4 KiB Random Read: 1,900K IOPS
Sustained 4 KiB Random Write: 400K IOPS
Supply Voltage: 12 V ±10%; 3.3 V ±15%
Power Consumption (Active): 19 Watts typical
Power Consumption (Ready): 5 Watts typical
MTTF: 2,500,000 hours
DWPD: 3
Thickness: 7.5 mm (+0.2 / -0.5 mm)
Width: 76 mm (±0.25 mm)
Length: 112.75 mm (±0.4 mm)
Weight: 110 g maximum
Temperature (Operating): 0°C to 76°C
Temperature (Non-operating): -40°C to 85°C
Humidity (Operating): 5% to 95% R.H.
Vibration (Operating): 21.27 m/s² (2.17 Grms) (5 to 800 Hz)
Shock (Operating): 9.8 km/s² (1000 G) (0.5 ms)
*
