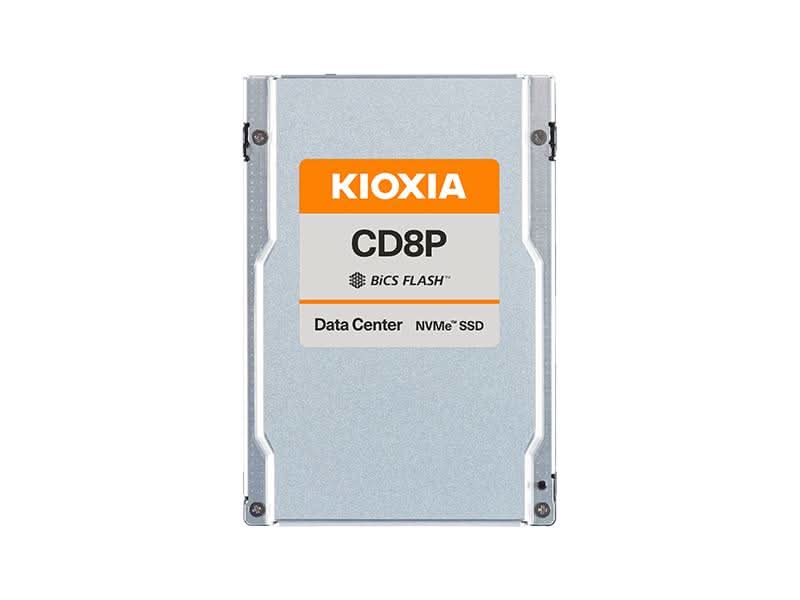

Kioxia CD8P-V KCD81PUG6T40 6.4TB PCIe 5.0 NVMe 2.5-Inch Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Kioxia KCD81PUG6T40 CD8P-V is a 6.4 TB enterprise solid state drive featuring a 2.5 inch form factor, PCIe 5.0 interface, NVMe 2.0 support, and BiCS FLASH TLC technology, delivering sequential read speeds up to 12,000 MB/s and write speeds up to 5,500 MB/s. It provides up to 2,000,000 random read IOPS and 400,000 random write IOPS, includes power loss protection and end to end data correction, supports 3 DWPD endurance, and offers a 2.5 million hour MTBF for demanding data center and enterprise storage environments.
Specifications
Model Number: KCD81PUG6T40
Brand: Kioxia
Alt Part Number(s): KCD81PUG6T40
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD81PUG6T40
Series: CD8P-V
Form Factor: 2.5"
Capacity: 6.4 TB
Flash Type: BiCS FLASH TLC
Interface: PCIe 5.0; NVMe 2.0
Max 4KB Random Read: 2,000,000 IOPS
Max 4KB Random Write: 400,000 IOPS
MTBF: 2,500,000 Hours
Device Type: Power Supply
Power Consumption Operational: 21 W
Power Voltage Required: 12V ±10%; 3.3V ±15%
Width: 69.85 mm
Depth: 100.45 mm
Height: 15 mm
Features: Power Loss Protection (PLP); End-to-End Data Correction
Min Operating Temperature: 0°C
Max Operating Temperature: 73°C
Max Sequential Read: 12,000 MB/s
Max Sequential Write: 5,500 MB/s
Endurance: 3 DWPD
Country of Origin: Japan
UNSPSC Code: 43201830
