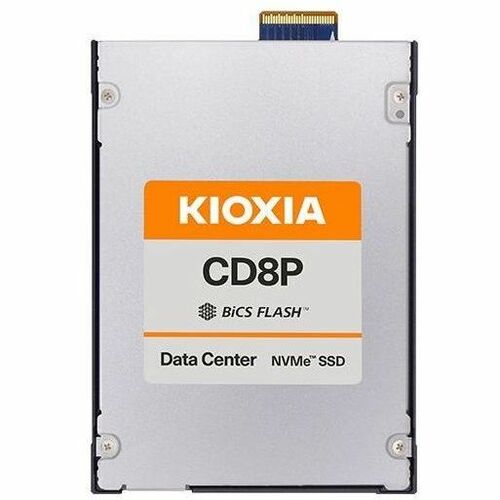

Kioxia CD8P-R KCD8DPUG30T7 30.72TB PCIe 5.0 NVMe 2.0 Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Kioxia KCD8DPUG30T7 CD8P-R Series Solid State Drive delivers 30.72 TB of BiCS FLASH TLC storage in a 2.5 inch 15 mm form factor with a PCIe 5.0 NVMe 2.0 interface and a maximum interface speed of 128 GT/s. It provides sequential read speeds up to 10,000 MB/s and sequential write speeds up to 4,900 MB/s with random performance of up to 1,600K IOPS read and 150K IOPS write, along with 1 DWPD endurance and a 2,500,000 hour MTTF for enterprise workloads.
Specifications
Model Number: KCD8DPUG30T7
Brand: Kioxia
Alt Part Number(s): KCD8DPUG30T7
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD8DPUG30T7
Series: CD8P-R
Capacity: 30.72 TB
Form Factor: 2.5-inch; 15 mm
Interface: PCIe 5.0; NVMe 2.0
Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)
Flash Memory Type: BiCS FLASH TLC
Sequential Read Speed: 10,000 MB/s
Sequential Write Speed: 4,900 MB/s
Random Read Speed: 1,600K IOPS
Random Write Speed: 150K IOPS
Supply Voltage: 12 V ±10%; 3.3 V ±15%
Power Consumption (Active): 24 W (Typical)
Power Consumption (Ready): 5.5 W (Typical)
MTTF: 2,500,000 Hours
DWPD: 1
Thickness: 15 mm (+0 / -0.5 mm)
Width: 69.85 mm ±0.25 mm
Length: 100.45 mm (Max)
Weight: 130 g (Max)
Operating Temperature: 0°C to 72°C
Non-Operating Temperature: -40°C to 85°C
Operating Humidity: 5% to 95% RH
Operating Vibration: 21.27 m/s² (2.17 Grms); 5 to 800 Hz
Operating Shock: 9.8 km/s² (1,000 G); 0.5 ms
