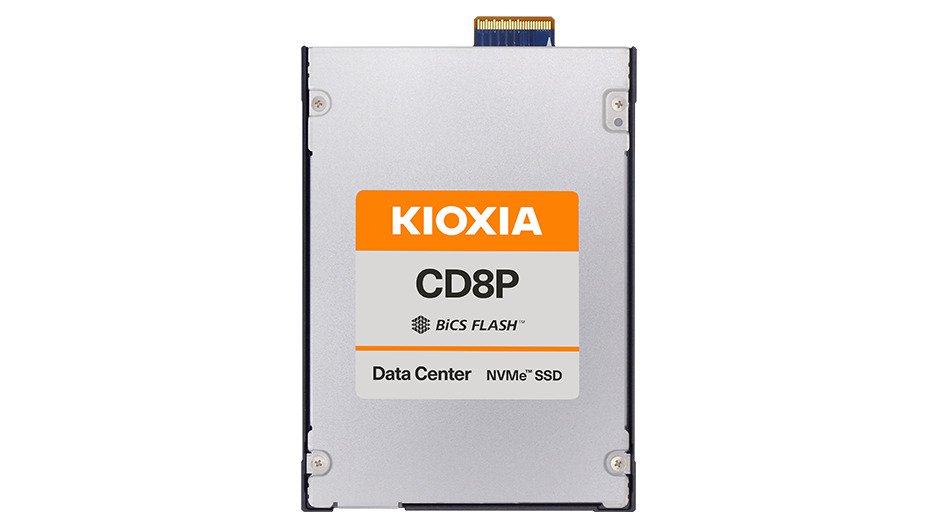

Kioxia CD8P-R KCD81PJE7T68 7.68TB PCIe 5.0 x4 NVMe 2.0 E3.S Internal SSD
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Kioxia KCD81PJE7T68 CD8P-R delivers 7.68TB of storage with PCIe 5.0 and NVMe 2.0 connectivity, achieving sequential read speeds up to 12,000 MB/s and write speeds up to 5,500 MB/s. Built with BiCS FLASH TLC in an E3.S form factor, it provides up to 2,000,000 random read IOPS, 200,000 random write IOPS, and 1 DWPD endurance for high-performance data center workloads.
Specifications
Model Number: KCD81PJE7T68
Brand: Kioxia
Alt Part Number(s): KCD81PJE7T68
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD81PJE7T68
Series: CD8P-R
Storage Capacity: 7.68TB
Form Factor: E3.S
Drive Interface Standard: PCIe 5.0; NVMe 2.0
Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)
Flash Memory Type: BiCS FLASH TLC
Maximum Sequential Read: 12000 MB/s
Maximum Sequential Write: 5500 MB/s
Random 4KB Read: 2000000 IOPS
Random 4KB Write: 200000 IOPS
Supply Voltage: 12V ±10%; 3.3V ±15%
Power Consumption (Active): 21W
Power Consumption (Ready): 5W
Mean Time To Failure (MTTF): 2500000 Hours
Endurance (DWPD): 1
Thickness: 7.5 mm
Width: 76 mm
Length: 112.75 mm
Weight: 110 g
Operating Temperature: 0°C to 76°C
Non-operating Temperature: -40°C to 85°C
Operating Vibration: 21.27 m/s² (2.17 Grms); 5 to 800 Hz
Operating Shock: 9.8 km/s² (1000 G); 0.5 ms
