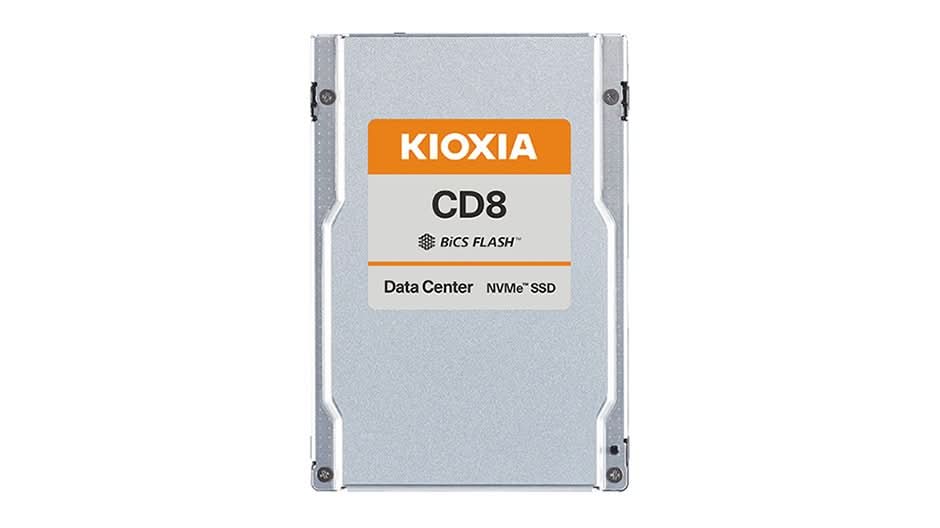

Kioxia CD8-R KCD81PUG15T3 15.36TB PCIe 5.0 NVMe 2.0 SSD
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Kioxia KCD81PUG15T3 CD8-R Series solid state drive provides 15.36 TB of enterprise storage with a PCIe 5.0 x4 NVMe 2.0 interface, BiCS FLASH TLC memory, sequential read speeds up to 12,000 MB/s, sequential write speeds up to 5,500 MB/s, and up to 2,000,000 random read IOPS. It is designed for data center workloads with 1 DWPD endurance, a 2.5 million hour MTTF, low power consumption, and reliable operation across demanding environmental conditions.
Specifications
Model Number: KCD81PUG15T3
Brand: Kioxia
Alt Part Number(s): KCD81PUG15T3
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD81PUG15T3
Series: CD8-R
Capacity: 15.36 TB
Form Factor: 2.5-inch; 15 mm thickness
Interface: PCIe 5.0; NVMe 2.0; PCIe Gen5 x4; Maximum Interface Speed: 128 GT/s
Flash Memory Type: BiCS FLASH TLC
Sequential Read: Up to 12,000 MB/s
Sequential Write: Up to 5,500 MB/s
Random Read: Up to 2,000,000 IOPS
Random Write: Up to 200,000 IOPS
Supply Voltage: 12 V ±10%; 3.3 V ±15%
Power Consumption: Active: 23 W (Typical); Ready: 5 W (Typical)
MTTF: 2,500,000 hours
DWPD: 1
Thickness: 15 mm +0 / -0.5 mm
Width: 69.85 mm ±0.25 mm
Length: 100.45 mm Maximum
Weight: 130 g Maximum
Operating Temperature: 0 °C to 73 °C
Non-operating Temperature: -40 °C to 85 °C
Operating Humidity: 5% to 95% RH
Operating Vibration: 21.27 m/s² (2.17 Grms); 5 to 800 Hz
Operating Shock: 9.8 km/s² (1,000 G); 0.5 ms
