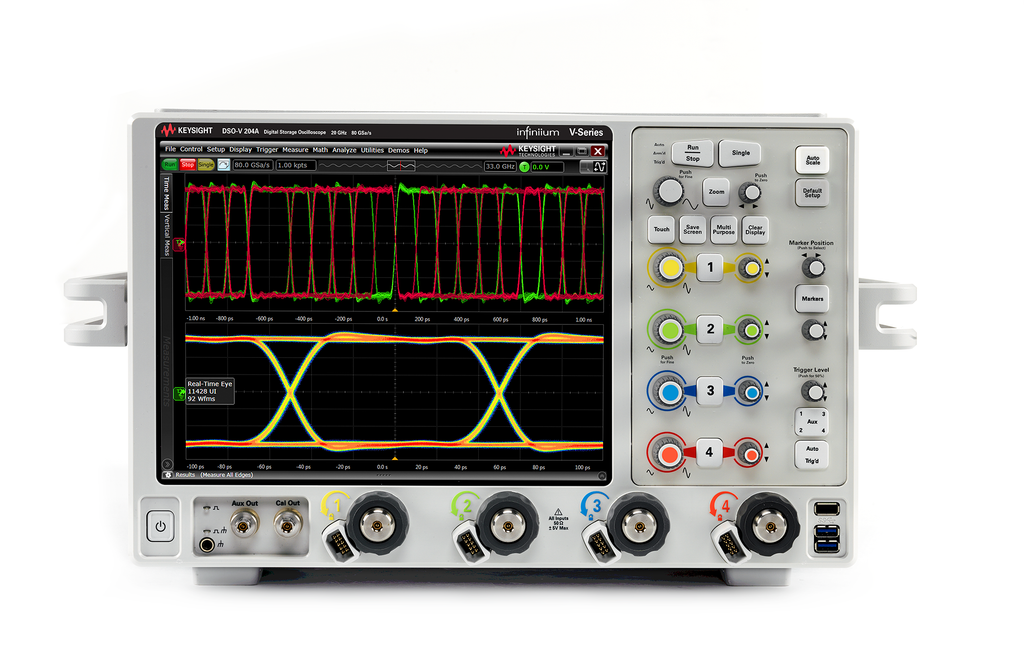

Keysight Infiniium V-Series DSOV204A 20 GHz Bandwidth 4 Analog Channels Digital Oscilloscope
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Keysight Infiniium V-Series DSOV204A Digital Oscilloscope delivers 20 GHz analog bandwidth, upgradable to 33 GHz, with 4 analog channels, a maximum sample rate of 80 GSa/s on 2 channels or 40 GSa/s on all 4 channels, and 2 Gpts acquisition memory. It features 8-bit ADC resolution, a 15.4-inch touchscreen display, a low noise floor of 1.54 mVrms at 50 mV/div, 100 fs intrinsic jitter, greater than 5.5 ENOB, and spurious-free dynamic range exceeding 50 dBc for high-speed signal analysis and precision testing.
Specifications
Model Number: DSOV204A
Brand: Keysight
Alt Part Number(s): DSOV204A
Product Type: Digital Oscilloscope
Technical Description
Brand: Keysight
Model: DSOV204A
Series: Infiniium V-Series
Analog Bandwidth: 20 GHz (upgradable up to 33 GHz)
Analog Channels: 4
Max Sample Rate: 80 GSa/s on 2 channels / 40 GSa/s on all 4 channels
Max Memory Depth: 2 Gpts acquisition memory
ADC Resolution: 8-bit
Front-End Connector Size: 3.5 mm
Display: 15.4-inch touchscreen display
Noise Floor: As low as 1.54 mVrms at 50 mV/div
Intrinsic Jitter Floor: 100 fs
Effective Number of Bits (ENOB): Greater than 5.5
Spurious Free Dynamic Range (SFDR): Exceeding 50 dBc
