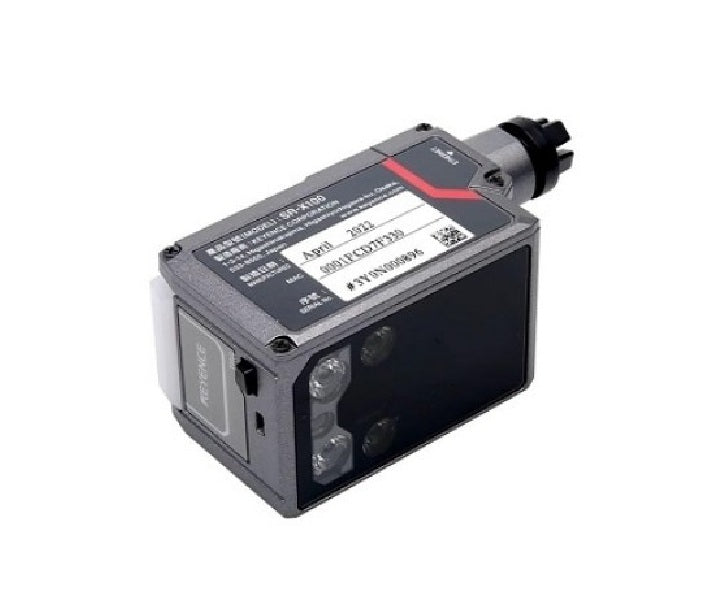

Keyence SR-X100W SR-X Series 1360×1024 Autofocus Code Reader
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
The Keyence SR-X100W is a wide-field, 1.4-megapixel autofocus code reader designed for versatile industrial automation. It specifically features a broader reading range and field of view compared to the standard SR-X100 model
Specifications
Model Number: SR-X100W
Brand: Keyence
Alt Part Number(s): SR-X100W
Product Type: Code Reader
Specifications
Brand: Keyence
Model: SR-X100W
Sensor: CMOS image sensor
Number of pixels: 1360 × 1024
Focus: Auto
Illumination light source: High-intensity red LED*4
Pointer light source: High-intensity green LED
2D codes: 0.060 mm 0.0024"
Barcodes: 0.082 mm 0.0032"
Reading distance: 50 to 1000 mm 1.97" to 39.37"
Reading field of view: 189 × 142 mm 7.44" × 5.59"
Number of inputs: 2
Input type: Bidirectional voltage input
Maximum rating: 30 VDC
Minimum ON voltage: 15 VDC
Maximum OFF current: 0.2 Ma
Number of outputs: 3
Output type: Photo MOS relay output
Maximum rating: 30 VDC
Maximum load current: 50 mA or less for 1 output, or 100 mA or less in total for 3 outputs
Leakage current when OFF: 0.1 mA or less
Residual voltage when ON: 1 V or less
Communication standard: IEEE 802.3-compliant 100BASE-TX
Communication standard: RS-232C-compliant
