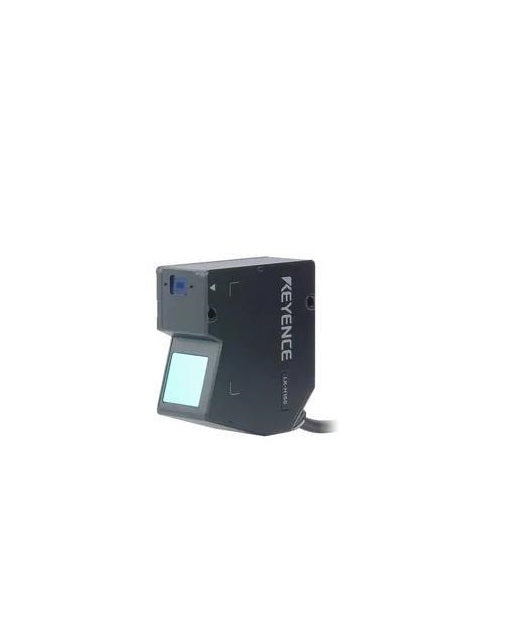

Keyence LK-H157 Ultra High-Speed Laser Displacement Sensor Head

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom
Keyence LK-H157 Ultra High-Speed Laser Displacement Sensor Head

Keyence LK-H157 Ultra High-Speed Laser Displacement Sensor Head

Price:
$2,999.00
KeyenceSKU: 1148958
Model Number: LK-H157
Condition: New Open Box
In stock:  Yes

NOTE: 90 Days Warranty from Seller only.

Quote
No reviews
SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.

Description

Specifications

Model Number:  LK-H157

Brand:  Keyence

Alt Part Number(s):  LK-H157

Product Type:  Sensor Head



Technical Description

Brand:  Keyence

Model:  LK-H157

Repeatability:  0.25 µm*4

Linearity:  ±0.02% of F.S. (F.S.= 80 mm)*3

Spot Diameter (at standard distance):  120 µm x 4,200 µm

Sampling Cycle:  2.55/5/10/20/50/100/200/500/1000 µs (9 steps selectable)

Temperature Characteristics:  0.01% of F.S./°C (F.S.= 80 mm)

Mounting Mode:  Diffuse reflective / Specular reflective*1

Reference Distance:  Diffuse reflective: 150 mm ; Specular reflective: 147.5 mm

Measuring Range:  Diffuse reflective: ±40 mm ; Specular reflective: -39.5 mm to +24.4 mm*2

Ambient Temperature:  0 to +50 °C*5

Relative Humidity:  35 to 85 % RH (No condensation)

Vibration Resistance:  10 to 55 Hz, Double amplitude 1.5 mm

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Wavelength:  655nm



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
