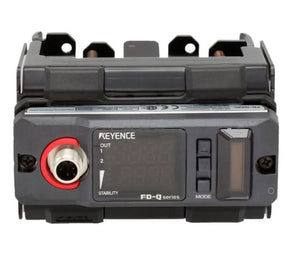

Keyence FD-Q32C Sensor Main Unit 25A/32A Clamp-on Flow Sensor

Specifications

Model Number:  FD-Q32C

Brand:  Keyence

Alt Part Number(s):  FD-Q32C

Product Type:  Flow Sensor



Technical Description

Brand:  Keyence

Model:  FD-Q32C

Display resolution:  0.1/ 1 (Default :1) (L/min)

Response time:  0.5 s / 1.0 s / 2.5 s / 5 s / 10 s / 30 s / 60 s

Repeatability:  0.5 s : ±2.0%, 1 s:±1.5%, 2.5 s : ±1.0%, 5 s : ±0.5%, 10 s

Maximum Rated Flow:  200 L/min, 300 L/min

Zero Cut Flow Rate (Default):  5.0 L/min

Power I/O connector:  M12 4-pin connector

Current Consumption:  130 mA or less (Load current excluded)

Enclosure Rating:  IP65/IP67 (IEC60529)

Sensor Main Unit:  PPS/PES/PBT/SUS303/SUS304/SUSXM7

Enclosure Rating:  IP65/IP67 (IEC60529)

Ambient Temperature:  -10 to +60 °C (No freezing)

Relative Humidity:  35 to 85 % RH (No condensation)

Vibration Resistance:  10 to 55 Hz, Double amplitude 1.5 mm

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet
