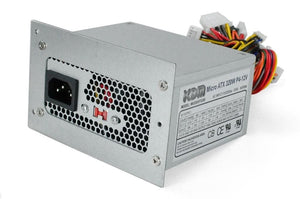

KDM MJPC-270A1 320Watt 88-264Volts AC 50-60Hz 20+4Pin ATX Power Supply Unit

Specifications

Model Number:  MJPC-270A1

Brand:  KDM

Alt. Part Number(s):  146860122

Product Type:  Power Supply Unit



Technical Description

Brand:  KDM

Model:  MJPC-270A1 / 146860122

Output Power:  320 Watt

Input Voltage:  88 -264 Volts Ac

Frequency:  60 / 50 Hz

Temperature Range Operating:  0° C ~ +25° C on 320W Output Load or 0° C ~ +50° C on 320W Output Load

Humidity:  5 ~ 90% on Operating, 5 ~ 95% on Storage

Dielectric Withstand:  Primary Frame Ground 1800V AC for 1 Second

MTBF:  100,000 Hours on Maximum Load at +25°C

Rise time:  Less than 20ms

Hold-up Time:  17ms Minimum at Nominal Input Voltage



Features

High efficiency

Low Ripple & Noise

Output over voltage protection

Short circuit protection on all outputs

Reset table power shut down

Approved by UL, CB & CE

24Pin (20+4) ATX Connector

Internal 80mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation.

FCC part 15 subpart J Class B at 115VAC operation & CISPR 22 Class B at 230 VAC operation

100% burn-in under high ambient temperature (50¢J)

Vacuum-impregnated transformer

100% Hi-pot tested
