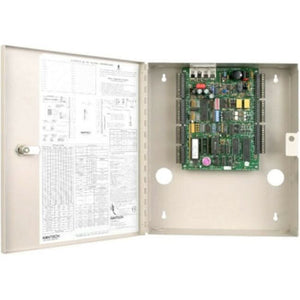

Kantech Door Controller Dual-Door Access Control KT-200

Overview

The KT-200 Door Controller is the basis of a 2-door access control system. The KT-200 is capable of controlling two separate doors or a single door (with readers on each side of the door). To form the system, each KT-200 is linked to other KT-200s using an "RS-485" communication bus. A smaller initial system can grow to secure hundreds of doors just by adding more controllers and the appropriate software.



Specifications

Model Number:  Kantech KT-200

Brand:  Kantech

Alt Part Number(s):  Kantech KT-200

Product Type:  Door Controller



Technical Description

Brand:  Kantech

Model:  Kantech KT-200

Max Number of Doors per Controller:   2 doors/controller

Onboard No/Type of Inputs / Outputs:  16 inputs

Communication Type:  RS-485/RS-232

Reader Max. Distance:  150M

Voltage:  24 V AC

Operating Temp oC:  2 ~ 40

Operating Humidity %:  0 ~ 90

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



Features

2 doors / 2 readers panel

Built-in power supply for door locks (24 VDC)

16 supervised inputs

2 form C relays

RS-485 / RS-232 communication ports

Optional REB-8 relay modules (2 per KT-200)

Lithium batteries for memory backup

Status LED on board



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
