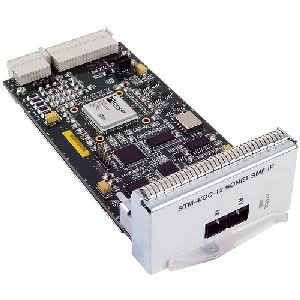

Juniper P-1OC12-SON-SMIR 1-Port SONet/SDH OC-12/STM4 Module

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom

Overview

The one-port OC-12c/STM-4 PIC is ideal for migrating backbones to higher speeds while preserving the option for redundant circuits. This PIC delivers up to 622-Mbps clear channel throughput.

SONET/SDH is a widely deployed, mature enabling technology used in providing high-speed, large-scale IP networks. This dependable technology combines high-bandwidth capacity with efficient link utilization, making it a major building block for accommodating a fast growing IP infrastructure both in the core and on the edge.

P-1OC12-SON-SMIR Product Overview

Technical Information

Application/Usage: Data Networking

Interfaces/Ports

Interfaces/Ports: 1 x OC-12c/STM-4
Interfaces/Ports Details: 1 x SC Duplex OC-12c/STM-4

Media & Performance

Connectivity Media: Single-mode Optical Fiber
Data Transfer Rate: 622 Mbps OC-12c/STM-4

Miscellaneous

Additional Information:
Length: 546.80 yards / 500 m
Wavelength: 1270 to 1380 nm
Average Launch Power: -20 to -14 dBm
Receiver Saturation: -14 dBm
Receiver Sensitivity: -26 dBm
MTU: 9192-byte
Operates in both concatenated and non-concatenated modes
Encapsulations: Frame Relay, HDLC, MPLS Circuit Cross-connect , PPP
Compatibility:
Supported Platform: M20
