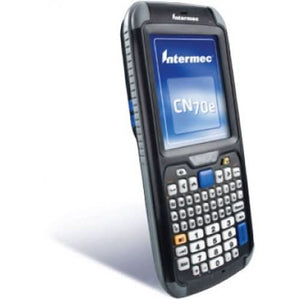

Intermec CN70EQ2KCD6W3100 CN70e 2D Imager Wireless Handheld Mobile Computer

Overview

The Intermec CN70e, with a large keypad designed for use with gloves, is engineered to be at home in demanding environments, where its industry-leading performance, incredible durability and low power consumption can actually reduce overhead. Its superior scanning performance and improved ergonomics lead to increased efficiency, while its extensive communication ability meets the needs of field workers. The no-compromise design of the CN70e includes an all-light visible VGA display, high durability touch panel and indestructible keypad technology to ensure that they stay in workers' hands instead of the repair depot. The CN70e also features a 3.75G WWAN and first-in-market dual-band 802.11n WLAN radios that provide mobile workers with high-performance connectivity inside and outside the four walls. And by combining an ultra-efficient processing architecture with long-life battery technology and state-of-the-art battery health diagnostics, dead batteries and downtime will become a thing of the past.



Specifications

Model Number:  CN70EQ2KCD6W3100

Brand:  Intermec

Alt Part Number(s):  CN70EQ2KCD6W3100

Product Type:  Mobile Computer



Technical Description

Brand:  Intermec

Model:  CN70EQ2KCD6W3100

Product Name:  CN70e Handheld Terminal

Product Type:  Handheld Terminal

Series:  CN70e

Processor:  Texas Instruments OMAP 1GHz

Connectivity Technology:  Wireless

Image Sensor:  Imager

Electrostatic Discharge (ESD):  +/-15 kV DC Air Discharge, +/-8 kV DC Direct Discharge

Drop Specification:  94.49" To Concrete, 70.87" To Concrete @ -4°F (-20°C) to 140°F (60°C)

Barcode Symbology Supported:  1D, 2D

Bluetooth:  Yes

Wireless LAN:  Yes

Antenna Form Factor:  Internal

Cellular Network Supported:  CDMA

Network Band:  Dual Band

Wireless LAN Standard:  IEEE 802.11a/b/g/n

Cellular Data Connectivity Technology:  EVDO

Wireless Security:  WPA, WPA2, WAPI, 802.1x, WEP (64 or 128 bit), AES, TKIP

Screen Mode:  VGA

Screen Size:  3.5"

Display Color:  Color

Screen Resolution:  480 x 640

Flash Memory:  1 GB

Standard Memory:  512 MB

Battery Capacity:  4000 mAh

Battery Chemistry:  Lithium Ion (Li-Ion)

Keyboard Type:  Numeric

Keyboard Layout:  QWERTY

Touchscreen:  Yes

Operating System:  Microsoft Windows Embedded Handheld 6.5

Width:  3.1"

Depth:  1.3"

Length:  7.7"

Green Compliant:  Yes

Green Compliance Certificate/Authority:  WEEE, RoHS



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
