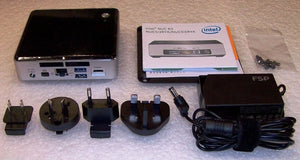

Intel BOXNUC5I5RYK Core i5-5250U DDR3L-1600MHz SODIMM Ultra-Compact NUC Kit

Specifications

Model Number:  BOXNUC5I5RYK

Brand:  Intel

Alt. Part Number(s):  NUC5I5RYK

Product Type:  NUC Kit



Technical Description

Brand:  Intel

Model:  BOXNUC5I5RYK / NUC5I5RYK

Form Factor:  Board Form Factor: Ultra-compact

Internal Drive Form Factor:  M.2 SSD

No. of Internal Drives Supported:  1

Lithography:  14 nm

TDP:  15 W

DC Input Voltage:  12-19 VDC

Processor:  Intel Core i5-5250U processor (3M Cache, up to 2.70 GHz)

Memory Size:  16 GB maximum (dependent on memory type)

Memory Type:  DDR3L-1333/1600 1.35 V 2 x SODIMMs

Memory Channels:  2 maximum

Memory Bandwidth:  25.6 GB/s maximum

DIMMs:  2 Maximum

Graphics Output:  Mini-DisplayPort 1.2, Mini-HDMI 1.4a

No of Displays Supported:  3

PCIe Revision:  PCIe Revision: 2

PCIe Configurations:  M.2 slot with PCIe x4 lanes

USB Ports:  2 x USB 2.0 (internal), 2 x USB 3.0 (back), 2 x USB 3.0 (front)

SATA Ports:  2 x SATA 6.0 Gb/s

RAID Configuration:  RAID-0, RAID-1

Audio Back Channel and Front Channel: 7.1 digital and analog stereo headset

Integrated LAN:  10/100/1000

WiFi Connectivity:  Intel Wireless-AC 7265 (integrated)

Bluetooth:  BT 4.0 (integrated)

Dimensions:  4.0 x 4.0" (10.1 x 10.1 cm)
