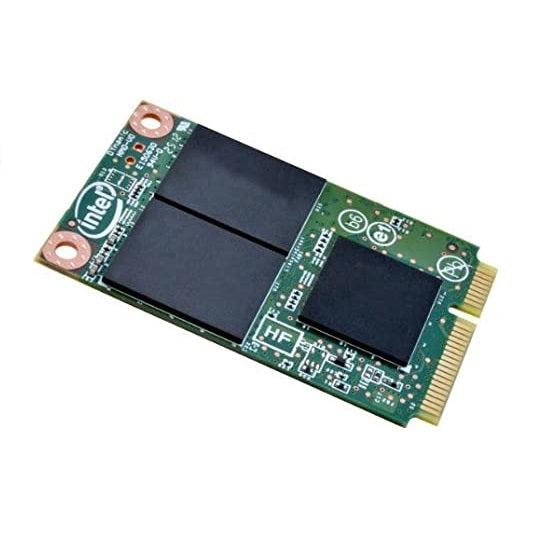

Intel SSDMCEAC030B301 525-Series Lincoln Crest 30Gb mSATA MLC Solid State Drive

Overview

Offering performance and low-power consumption in a package one-eighth the size of a 2.5-inch hard drive, the Intel Solid-State Drive 525 Series accelerates PC performance with random reads of up to 50,000 input/output operations per second (IOPS)1 and sequential reads of up to 550 megabytes per second (MB/s)2. Couple that with random write performance of up to 80,000 IOPS3 and sequential writes of 520 MB/s to unleash demanding multitasking applications in notebooks, embedded applications, and workstation upgrades. With performance also comes superior data protection, and the Intel® SSD 525 Series features Advanced Encryption Standard (AES) 128-bit capabilities, securing data in the event a PC is lost or stolen. And because SSDs have no moving parts, they reduce risk of data loss while consuming less power for proven reliability.



Specification

Brand:  Intel

Model Number: SSDMCEAC030B301

Part Number:  SSDMCEAC030B3

Product Type:  Internal Solid State Drive (SSD)



Technical Description

Brand:  Intel

Model:  SSDMCEAC030B301

Series:  525 Series

Device Type:  Internal Solid State Drive (SSD)

Used For:  Consumer

Capacity:  30GB

Memory Components:  MLC

Interface:  Mini-SATA (mSATA)

Max Sequential Read:  Up to 500 MB/s

Max Sequential Write:  Up to 275 MB/s

4KB Random Read:  Up to 50,000 IOPS

4KB Random Write:  Up to 80,000 IOPS

MTBF:  1,200,000 hours

Power Consumption (Idle):  275 mW

Power Consumption (Active):  350 mW

Operating Temperature:  0°C ~ +70°C

Storage Temperature:  -55°C ~ +95°C

Operating Humidity:  5% to 95% RH

Max Shock Resistance:  1000G

Height:  3.7mm



Features

High I/O and throughput performance

Low power

Increased system responsiveness

High reliability

Enhanced ruggedness

Small form-factor

Minimum weight

Advanced Encryption Standard (AES) 128-bit Encryption

End-to-End Data Protection

Data Compression
