Description

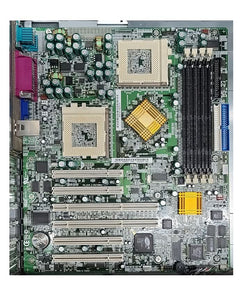

The Intel SAI2 Server Board is an economical server board with support for two Intel Pentium III processors with 512-KB of L2 cache and 4 GB of PC133 ECC SDRAM memory. With their increased L2 cache, these processors help provide the performance headroom your customers require to meet a wide range of e-Business needs. The Server Board SAI2 provides the power of dual Intel Pentium III processors and excellent quality, without the higher cost usually associated with higher performance.
SAI2 Specifications
Processor & Chipset
- Chipset Manufacturer: Broadcom
- Chipset Model: Serverset III LE
- Total Processor Supported: 2
- Processor Socket: Socket PGA-370
- Processor Supported: Pentium III
- Front Side Bus: 133 MHz
Memory
- Number of Memory Slots: 4
- Maximum Memory: 4 GB
- Memory Standard: PC133
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Ultra ATA/100 (ATA-6)
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 8 MB
Network & Communication
- Fast Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 6
- Number of PCI Slots: 6
Interfaces/Ports
- Total Number of USB Ports: 2
- Parallel Port: Yes
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 2
- Onboard LEDs Header: Yes
Physical Characteristics
- Width: 12.0"
- Depth: 10.0"
Miscellaneous
- Package Contents:
- 1 x Intel Server Board SAI2
-
Chipset:
- ServerWorks ServerSet III LE consists of:
-
- Northbridge: CNB30LE
- Southbridge: CSB5
- 133-MHz Front Side Bus (FSB) Capability
Special Features:
- IDE drive auto configure
- SM BIOS 2.3
- ECC/Parity support
- Multilingual support
-
Error Detection:
- Corrects single-bit errors
- Detects double bit errors (using ECC memory)
