Description
Overview

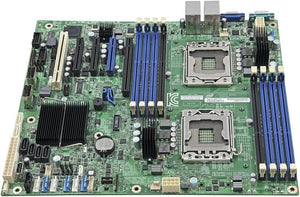

The Intel® Server Board S2400SC2 is built as a standard form factor server board and delivers affordable storage expandability in either a pedestal or rack chassis by providing eight SAS/SATA ports plus two SATA 6 Gb and four SATA 3 Gb ports. The Intel Server Board S2400SC2 supports up to five low-profile host bus adapters (HBAs), integrated dual 1 GbE NICs, and an optional dedicated management NIC via the Intel® Remote Management Module 4, providing affordable enterprise-class manageability and connectivity.
Chipset Model: C600-A
Total Processor Supported: 2
Processor Technology: Trusted Execution Technology
Processor Socket: Socket B2 LGA-1356
Processor Supported: Xeon
QuickPath Interconnect: 8 GT/s
64-bit Processing: Yes
Number of Memory Slots: 8
Memory Form Factor: UDIMM
Memory Form Factor: DIMM
Memory Form Factor: RDIMM
Maximum Memory: 128 GB
Memory Standard: DDR3-1333/PC3-10600
Memory Standard: DDR3-1600/PC3-12800
Memory Standard: DDR3-800/PC3-6400
Memory Standard: DDR3-1066/PC3-8500
Memory Technology: DDR3 SDRAM
Controller Type: Serial Attached SCSI (SAS)
Controller Type: Serial ATA/300
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 1+0
RAID Levels: 1
RAID Levels: 0
RAID Levels: 5
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Memory: 16 MB
Graphics Memory Technology: DDR3 SDRAM
Graphics Memory Accessibility: Dedicated
Number of Total Expansion Slots: 5
Number of PCI Slots: 1
PCI Express Standard: PCI Express 2.0
PCI Express Standard: PCI Express 3.0
Total Number of PCI Express Slots: 4
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 1
Number of eSATA Ports: 0
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Serial Port: Yes
Audio Line In: No
Audio Line Out: No
Microphone Port: No
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 6
Number of SAS Interfaces: 8
Total Number of Onboard USB Ports: 2
Number of Onboard USB 2.0 Ports: 2
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Power Supply Supported: EPS12V
Form Factor: SSI CEB
Width: 12.0"
Depth: 10.5"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
