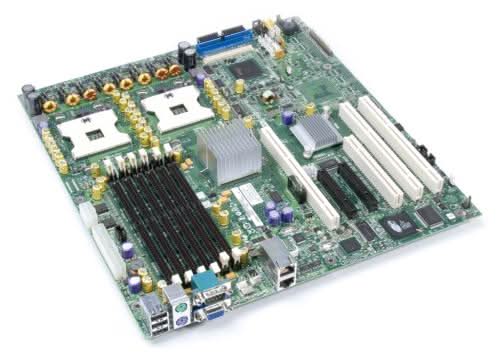

Intel SE7520BD2 Xeon IE7520 24GB Socket PGA-604 E-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Intel Server Board SE7520BD2, supported by dual Intel Xeon processors and the Intel E7520 chipset, meets the needs for high-clock-speed CPUs, high-bandwidth I/O, fast-access memory, as well as ample and redundant storage options. Additionally, comprehensive management tools enable businesses and large workgroups to effectively run line-of-business applications, departmental databases, and file and messaging servers.
Specifications
Model Number: SE7520BD2
Brand: Intel
Alt Part Number(s): SE7520BD2
Product Type: Motherboard
Model Number: SE7520BD2
Brand: Intel
Chipset Model: E7520
Total Processor Supported: 2
Processor Technology: Hyper-Threading Technology
Processor Socket: Socket PGA-604
Processor Supported: Xeon
Front Side Bus: 800
Number of Memory Slots: 6
Maximum Memory: 24GB
Memory Standard: DDR333/PC2700
Memory Standard: DDR266/PC2100
Memory Technology: DDR SDRAM
Controller Type: Serial ATA/150
Controller Type: Ultra ATA/100 (ATA-6)
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Rage-XL
Graphics Controller Memory: 8MB
Number of Total Expansion Slots: 6
Number of PCI Slots: 1
Number of PCI-X Slots: 3
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 3
Number of USB 2.0 Ports: 3
Number of IDE Interfaces: 1
Number of SATA Interfaces: 2
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes
Form factor: E-ATX
Width: 12.0"
Depth: 13.0"
