Description
Overview

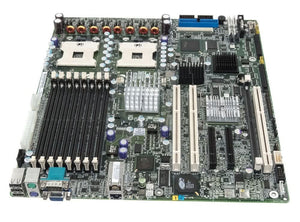

The Intel Server Board SE7520AF2 provides an ideal solution for business-critical database, departmental, and workgroup server solutions. The board offers outstanding performance through support for dual Intel Xeon processors with an 800MHz system bus. In addition, seven independent PCI buses and PCI Express I/O technology provide flexible and scalable I/O, and highly reliable storage is enabled through support for dual-channel Ultra320 SCSI supporting RAID levels 0 and 1 and optional integrated Intel RAID providing RAID levels 0, 1, 5, 10, and 50.
Technical Description
Chipset Model: E7520
Total Processor Supported: 2
Processor Technology: Hyper-Threading Technology
Processor Socket: Socket PGA-604
Processor Supported: Xeon
Front Side Bus: 800 MHz
Number of Memory Slots: 8
Maximum Memory: 16 GB
Memory Standard: DDR2-400/PC2-3200
Memory Technology: DDR2 SDRAM
Controller Type: Floppy Controller
Controller Type: Ultra320 SCSI
Controller Type: Serial ATA/150
Controller Type: Ultra ATA/100 (ATA-6)
RAID Supported: Yes
RAID Levels: 0
RAID Levels: 1
RAID Levels: 5
RAID Levels: 1+0
RAID Levels: 5+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Rage-XL
Graphics Controller Memory: 8 MB
Number of Total Expansion Slots: 5
Number of PCI-X Slots: 3
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 3
Number of USB 2.0 Ports: 3
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of IDE Interfaces: 1
Number of SATA Interfaces: 2
Number of SCSI Interfaces: 2
Total Number of Onboard USB Ports: 1
Onboard LEDs Header: Yes
Width: 12.0"
Depth: 13.0"
