Description

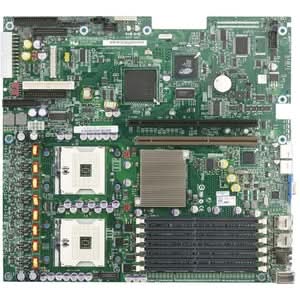

The Intel Server Board SE7320VP2 address the need for high performance, availability and scalability all on a limited budget in entry-level HPC and front-end applications in high-density environments. The Intel Server Board SE7320VP2 pairs a thin, space-saving form factor with high performance and availability, making it an exceptional choice for scalable 1U and 2U high-density rack systems.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: E7320
- Total Processor Supported: 2
- Processor Socket: Socket PGA-604
- Processor Supported: Xeon
- Front Side Bus: 800 MHz
Memory
- Number of Memory Slots: 6
- Maximum Memory: 24 GB
- Memory Standard: DDR266/PC2100
- Memory Standard: DDR333/PC2700
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Ultra ATA/100 (ATA-6)
- Controller Type: Serial ATA/150
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage-XL
- Graphics Controller Memory: 8 MB
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Total Number of Onboard USB Ports: 1
- Onboard LEDs Header: Yes
Physical Characteristics
- Width: 13.0"
- Depth: 12.0"
Miscellaneous
-
Package Contents:
- One Intel Server Board SE7320VP2
- Quick Start User Guide
- Cable kit
- I/O shield
- Board-configuration label
- Intel Server Management 8 CD Pack containing:
- Intel Server Deployment Toolkit with Intel Express Installer, Intel Server Maintenance and Reference Training (SMaRT) Tool Software, server product information, technical documentation, customer support information, drivers and utilities, and Web links
- CD-ROM with Intel Server Manager 8 family of software
-
Additional Information:
- One asynchronous RS-232C 8-pin RJ45 port with one 10-pin internal header
Expansion Slots:
- Two riser card slots:
- The first riser slot is an Intel Adaptive Slot supporting PCI Express x4 and PCI-X 66MHz
- The second riser slot supports PCI-X 66MHz
BIOS:
- Type:
- 4Mb Flash EEPROM with AMI BIOS, Multiboot BBS (BIOS Boot Specification) 1.4 compliant
- Special Features:
- Plug and Play, IDE drive autoconfigure, SMBIOS 2.3, ECC/Parity support, multilingual support, enabled for rolling/online BIOS updates, flashable, integrated BIOS setup utility
- Configuration Utilities:
- Server Configuration Wizard for system setup of BIOS utilities; Save and Restore System Configuration Utility and initial Intel Server Management configuration
Warranty
- Limited Warranty: 3 Year
