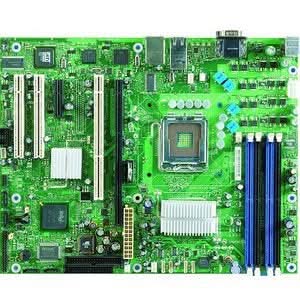

Intel SE7230NH1LX E7320 LGA775 Socket SATA-300(RAID) Video LAN ATX Server Motherboard Bare Board
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The new Intel Server Board SE7230NH1-E takes computer and I/O performance to the next level and enables businesses to achieve better overall performance without sacrificing cost-effectiveness or reliability. The Intel Server Board SE7230NH1-E is ideally suited for use as a Web server or appliance server.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: E7230
- Total Processor Supported: 1
- Processor Socket: Socket T LGA-775
- Processor Supported: Pentium 4
- Processor Supported: Pentium Extreme Edition
- Processor Supported: Pentium 4 (Extreme Edition)
- Processor Supported: Pentium D
- Processor Supported: Celeron D
- Front Side Bus: 1066 MHz
- Front Side Bus: 800 MHz
Memory
- Number of Memory Slots: 4
- Maximum Memory: 8 GB
- Memory Standard: DDR2-400/PC2-3200
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-533/PC2-4200
- Memory Technology: DDR2 SDRAM
I/O Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/100 (ATA-6)
- Controller Type: Floppy Controller
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 5
- Number of PCI Slots: 2
- Number of PCI-X Slots: 1
- Total Number of PCI Express Slots: 1
- Number of PCI Express x4 Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 4
