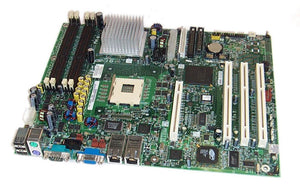

Model Number: SE7210TP1-E
Brand: Intel
Alt. Part Number(s): SE7210TP1
Type: Motherboard
Technical Description
Brand: Intel
Model: SE7210TP1-E / SE7210TP1
Socket Type: 478
CPU Type: Intel Pentium 4
System Bus: 800/533MHz
CPU Technologies: Hyper-Threading Technology
Chipsets: Intel E7210
Number of DDR Slots: 4 x 184Pin
DDR Standard: DDR 400 (PC 3200)
Max Memory Supported: 4GB
Channel Supported: Dual Channel
ECC Supported: Yes
PCI-X Slots (64-bit 66MHz): 3
PCI Slots: 1
PATA: 2 x ATA 100 4 Dev. Max
SATA: 2 x SATA 1.5Gb/s
Onboard Video Chipset: ATI RAGE XL
LAN Chipset: Intel 82547EI
LAN Speed: 10/100/1000Mbps
Second LAN Chipset: Intel 82551QM
Second LAN Speed: 10/100Mbps
Max LAN Speed: 10/100/1000Mbps + 10/100Mbps
PS/2 Ports: 2
COM Port: 1
Video Ports: 1
USB 1.1/2.0: 3 x USB 2.0
Onboard USB: 1 x USB 2.0
Form Factor: ATX
Dimensions (W x L): 12.0" x 9.6"
* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
