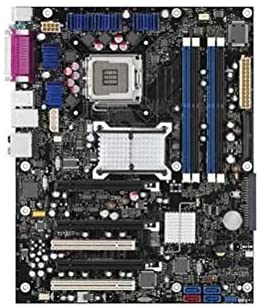

Intel S975XBX2 Intel 975X Express Socket-LGA775 Pentium-D DDR2 ATX Workstation Board

Overview

In addition to supporting the first Intel Quad-Core processor, the Intel Workstation Board S975XBX2 is based on Intel 975X Express chipset. This combination enables key performance-optimized capabilities such as support for one PCI Express x16 or multiple PCI Express x8 graphics cards, as well as 8 GB ECC memory addressability to enable 64-bit computing. For those using storage-intensive applications, the S975XBX2 provides up to eight hard disks configuration with integrated SATA RAID.



Specifications

Model Number:  S975XBX2

Brand:  Intel

Alt Part Number(s):  S975XBX2

Product Type:  Motherboard



Technical Description

Brand:  Intel

Model:  S975XBX2

Product Line:  Intel Workstation Board

Chipset Type:  Intel 975X Express

Processor Socket:  LGA775 Socket

Connector Type:  6 pin FireWire, mini-jack

Interface:  ATA-100, Serial ATA-300

Number of Memory Slots:   4

Maximum Memory:  8 GB

RAM Technology:  DDR2 SDRAM

Expansion Slots:  1 x CPU 4 x DIMM 240-pin (1.8 V) 1 x PCIe x16 1 x PCIe x16 1 x PCIe x16 2 x PCI

Connector(s):  1 x 40pin IDC, 3 x 7pin Serial ATA, 1 x 7pin external SATA, 4 x 7pin Serial ATA

Data Link Protocol:  Ethernet, Fast Ethernet, Gigabit Ethernet

Network Controller:  Intel 82573E / 82573L

Network:  Gigabit Ethernet

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  ATX

Width:  12 in

Depth:  9.6 in



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
