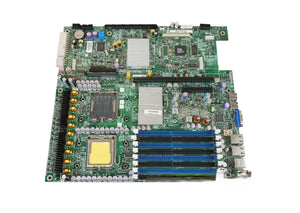

Intel S5000PALR Xeon LGA771 DDR2 24-Pin SSI TEB 2.1 Server Board

Overview

The Intel Server Board S5000PALR supports Dual-Core Intel Xeon processors using the Intel 5000P chipset, it delivers high levels of performance, reliability and manageability. Together, these capabilities address the needs of enterprise-level computing in space-constrained environments, particularly those running Internet, departmental database, data-center, and other high-transaction applications.



Specifications

Model Number:  S5000PALR

Brand:  Intel

Condition:  Refurbished

Alt. Part Number(s):  S5000PALR

Product Type:  Server Motherboard



Technical Description

Brand:  Intel

Model:  S5000PALR

Form Factor:  SSI TEB 2.1

Compatible Processors:  Dual-Core Xeon 5000 series, Dual-Core Xeon 5100 series, Quad-Core Xeon 5300 series

64-bit Processors Compatibility:  Yes

Processor Socket:  LGA771 Socket

Multi-Core Support:  Dual-Core / Quad-core

Chipset Type:  Intel 5000P / Intel ESB2-E

Max Bus Speed:  1333 MHz

Storage Controller:  ATA-100, Serial ATA-300 (RAID)

Power Connectors:  24-pin main power connector, 8-pin ATX12V connector

Installed Qty (Max Supported):  0 ( 2 )

Supported RAM Technology:  DDR2 SDRAM

Supported RAM Integrity Check:  ECC

RAM Installed ( Max ):  0 MB / 32 GB (max)

Supported RAM Speed:  PC2-4300, PC2-5300

RAM Features:  Dual channel memory architecture, Memory Mirroring, fully buffered
