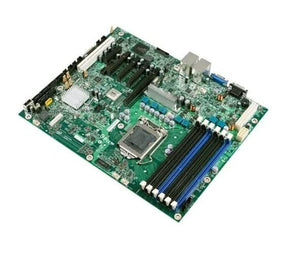

Intel S3420GPRX Chipset-Xeon 3420 Socket-LGA1156 32Gb 340-Pin DDR3-1333MHz ATX Server Motherboard

Overview

Growing businesses need a reliable server solution for web servers, file and print servers, e-mail servers, storage servers and vertical-specific business applications. A general-purpose entry server platform plays a fundamental role in the success of a workgroup, department, small- to medium- sized business or high performance computing (HPC). The Intel Server Board S3420GP provides server-class performance without sacrificing cost-effectiveness or reliability.



Specifications

Model Number:  S3420GPRX

Brand:  Intel

Alt Part Number(s):  S3420GPRX

Type:  Server Motherboard



Technical Description

Brand:  Intel

Model:  S3420GPRX

CPU Socket Type:  LGA 1156

CPU Type:  Intel Xeon 3400 / Core i3

Chipsets:  Intel 3420

Number of DDR3 Slots:  6 x 240pin

DDR3 Standard:  DDR3 1333/1066

Maximum Memory Supported:  32GB

PCI Express 2.0 x16:  One PCI Express Gen2 x16 (x8 throughput) connector

SATA:  6 x SATA 3.0Gb/s

SATA RAID:  0/1/5/10

Onboard Video Chipset:  Integrated Graphics

LAN Chipset:  Intel 82576

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Intel 82576

Second LAN Speed:  10/100/1000Mbps

Third LAN Chipset:  Intel 82574L

Third LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Penta-GbE

Video Ports:  D-Sub

USB 1.1/2.0:  2 x USB 2.0

Form Factor:  ATX

Dimensions (W x L):  12.0" x 9.6"



Features

Integrated IPMI 2.0 baseboard management controller



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
