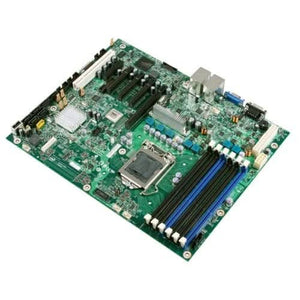

Intel S3420GPLC Chipset-Xeon 3420 Socket-LGA1156 DDR3-1333MHz ATX Server Motherboard

Overview

Growing businesses need a reliable server solution for web servers, file and print servers, e-mail servers, storage servers and vertical-specific business applications. A general-purpose entry server platform plays a fundamental role in the success of a workgroup, department, and small- to medium- sized business or high performance computing (HPC). The Intel Server Board S3420GP provides server-class performance without sacrificing cost-effectiveness or reliability.



Specifications

Model Number:  S3420GPLC

Brand:  Intel

Alt Part Number(s):  S3420GPLC

Product Type:  Server Motherboard



Technical Description

Brand:  Intel

Model:  S3420GPLC

CPU Socket Type:  LGA 1156

CPU Type:  Intel Xeon 3400 series

Chipset:  Intel 3420

Number of DDR3 Slots:  6 x 240pin

DDR3 Standard:  DDR3 1333

Registered:  Yes

PCI Express x8:  1 x PCI Express 2.0 x8 slot (x16 mechanical), 1 x PCI Express 2.0 x8 slot (x8 mechanical)

PCI Express x4:  1 x PCI Express x4 slot (x8 mechanical)

PCI Slots:  1 x PCI Slot

SATA:  6 x SATA 3.0Gb/s

SATA RAID:  0/1/5/10

Onboard Video Chipset:  Server Engine LLC Pilot II

LAN Chipset:  Intel 82574L

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Intel 82578DM

Second LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Dual 10/100/1000Mbps

COM Ports:  1

Video Ports:  D-Sub

USB 1.1/2.0:  4 x USB 2.0

Form Factor:  ATX

Dimensions (W x L):  12.0" x 9.6"



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
