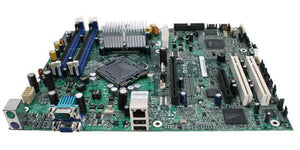

Intel S3200SHV LGA775/ Intel 3200/ SATA Raid/ VID & GbE/ SSI TEB Server Board

Overview

Growing businesses need a trusted server solution for database, file, or messaging applications. A general-purpose entry server platform plays a fundamental role in the success of a workgroup, department, or small-sized to medium-sized business. The Intel Entry Server Board S3200SH is ideal for customers who need server-class performance but don't want to sacrifice effectiveness or reliability.



Specifications

Model Number:  S3200SHV

Brand:  Intel

Alt. Part Number(s):  S3200SHV

Product Type:  Server Motherboard



Technical Description

Brand:  Intel

Model:  S3200SHV

Board Form Factor:  ATX

Chassis Form Factor:  Rack or Pedestal

Socket:  LGA775

Integrated BMC with IPMI:  IPMI 2.0

Embedded Options Available:  Yes

Description:  Intel Server Board S3210SHV with single GbE.

Target Market:  Small Business/1st Server



Memory Specifications

Max Memory Size (dependent on memory type) 8 GB

Memory Types DDR2 ECC UDIMM

Total DIMMs 4



Graphics Specifications

Integrated Graphics Yes



Expansion Options

PCI Support 2

PCIe x4 Gen 1.x 1

PCIe x8 Gen 1.x 1



I/O Specifications

USB Revision USB 2.0

USB 2.0 Configuration (Back + Internal) 5

Total # of SATA Ports 6

RAID Configuration Intel Emb RAID (0,1, 5)

Total Serial Ports 2

Integrated LAN Single, GbE

Integrated SAS Ports 0



Package Specifications

Max CPU Configuration 1

Low Halogen Options Available See MDDS



Advanced Technologies

Intel® Remote Management Module Support No

 NOTE:- New board only. No accessories or I/O shield
