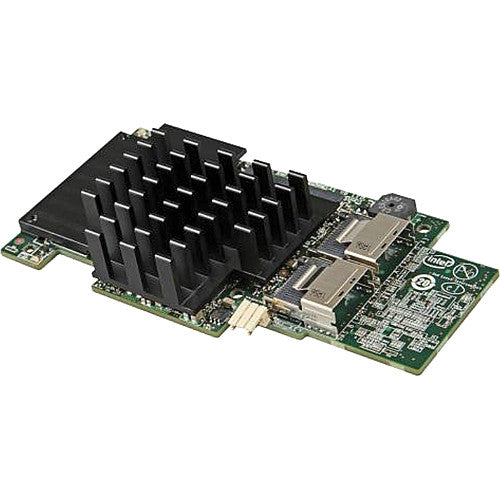

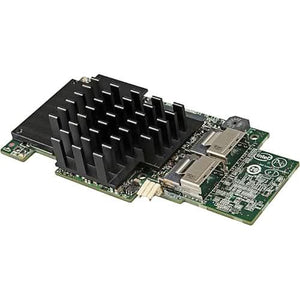

Intel RMS25CB080N 8-Ports 1Gb DDR3 8x PCI-Express 3.0 SAS/SATA 6.0Gbps Raid Module

Specifications

Model Number:  RMS25CB080N

Brand:  Intel

Condition:  New Bulk (New module with mounting standoffs and quick start guide)

Alt. Part Number(s):  RMS25CB080N

Type:  Raid Module



Technical Description

Brand:  Intel

Model:  RMS25CB080N

Number of Ports:  8-port SAS with 1 GB DDR3

RAID Levels:  RAID levels 0, 1, 5 and 6

RAID Spans:  10, 50 and 60

Data Transfer Rate:  Up to 6 Gb/s per port

PCI Interface:  8 x PCI Express 2.0/3.0

Data Protection:  Online Capacity Expansion, Hot-Spare Support- Global and Dedicated, Single Controller Multipathing (Failover), Enclosure Management (SES2, SGPIO), Background Consistency Checking, Patrol Read for Media Functionality, S.M.A.R.T. Support

RAID Features:  Intel RAID Web Console 2, Intel RAID Command Line Tool, Intel RAID Flash Utilities

I/O Processor:  LSI SAS2208 ROC running at 800 MHz

Drive Type:  SAS 6 Gb/s or SATA 6 Gb/s, SAS 3 Gb/s or SATA 3 Gb/s

Maximum Hard Drives:  Supports up to 128 physical devices

RAID & Volume Operation:  Maximum RAID volumes: 64

Connectors:  2 x SAS SFF8087, 4 x SAS internal connectors

Cache Memory:  Includes 1 GB embedded DDR3 at 1333 MHz

Cache:  Option for Lithium Polymer BBU or Maintenance Free NAND and Supercap module backup

Operating Temperature:  Maximum ambient: 149°F (65°C), (131°F (55°C) with optional BBU)

Server Boards:  Supports Intel Server Boards S2600GZ, S2600IP, W2600CR, S2400EP, S2400GP and systems including these motherboards

Operating Systems:  Extensive support includes Microsoft Windows Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware

Form Factor:  1U capable mezzanine card
