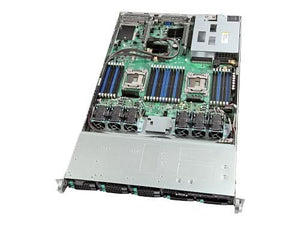

Intel R1208WT2GSR LGA2011-3 Intel C612 Chipset 1U Rack-Mountable Server System

Overview

Integrated 1U system featuring an Intel Server Board S2600WT2R supporting eight 2.5 inch hot-swap drives, dual 1-GbE LAN, 24 DIMMs, one 750 W redundant-capable power supply, enterprise class I/O, with built in discrete management network interface.



Specifications

Model Number:  R1208WT2GSR

Brand:  Intel

Alt Part Number(s):  R1208WT2GSR

Product Type:  Server System



Technical Description

Brand:  Intel

Model:  R1208WT2GSR

Socket:  LGA2011-3 Socket

Chipset Type:  Intel C612

RAM Installed Size:  0 GB / 1536 GB (max)

RAM Technology:  DDR4 SDRAM – ECC

Bays:  8 (total) / 8 (free) x hot-swap 2.5"

Interfaces:  1 x VGA ¦ 8 x USB 3.0 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x serial - RJ-45

Networking Ethernet Ports:  2 x Gigabit Ethernet

Controller Interface Type:  SATA 6Gb/s / SAS 12Gb/s

RAID Level:  RAID 0, RAID 1, RAID 10

Data Link Protocol:  Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet Controller:  Intel I350

Remote Management Protocol:  IPMI 2.0

Remote Management Controller:  Emulex Pilot 3 iBMC

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  Rack-mountable - 1U

Width:  16.9 in

Depth:  28 in

Height:  1.7 in
