Description

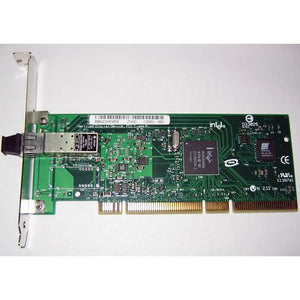

Alleviate bottlenecks and increase uptime with Gigabit performance for servers in single- and multi-mode fiber-optic networks. The Intel® PRO/1000 MF Server Adapter, with a self-configuring PCI/PCI-X interface, delivers high throughput while conserving CPU resources. Enhance server performance further by teaming multiple Intel® PRO Server Adapters with Intel's advanced server feature software for multi-Gigabit scalability and redundant failover capability. With a flexible design that fits almost any type of PCI bus, the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.
PWLA8490MF Specifications
Interfaces/Ports
- Host Interface: PCI-X
- Total Number of Ports: 1
Media & Performance
- Fiber Optic Cable Standard: 50/125 µm
- Fiber Optic Cable Standard: 62.5/125 µm
Network & Communication
- Network Technology: 1000Base-SX
Physical Characteristics
- Form Factor: Plug-in Card
- Height: 2.5"
- Width: 6.6"
Miscellaneous
- Additional Information:
- Intel® SingleDriver technology
- Plug and Play Specification Support
- Easy Installation, Intel® PROSet II Utility and Intel® Intelligent Install
- Auto-negotiation, Full-duplex Capable
- Includes a Low-profile and a Full-height Bracket
- Interrupt Levels: INTA
- Controller-Processor: Intel® 82545EM
Physical Dimensions: - Height of Full-Height End Bracket: 12.1cm (4.75 in)
- Height of Low-Profile End Bracket: 8.1cm (3.2 in)
NOS SOFTWARE SUPPORT: - Microsoft Windows 2000, XP
- Microsoft Windows NT 4.0
- Novell Netware 4.11, 4.2, 5.0, 5.1, 6.0
- SunSoft Solaris 7, 8
- UnixWare 7.x, OpenUNIX 8 (ddi8)
- Linux 2.2.4 or Better
- FreeBSD (latest kernel)
ADVANCED SOFTWARE FEATURES: - Adapter Fault Tolerance
- Switch Fault Tolerance
- Adaptive Load Balancing
- Receive Load Balancing
- Gigabit EtherChannel
- IEEE 802.3ad (Link Aggregation Control Protocol)
- Test Switch Configuration
- PCI Hot Plug and Active PCI
- 802.1Q VLANs
- 802.3x Flow Control
- TCP Checksum Offload
- IEEE 802.1p
- TCP Segmentation/Large Send Offload
- Interrupt Moderation
- Save and Restore
- Certifications & Standards:
- FCC A
- CE
- IEEE 802.3z
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3ad
Warranty
- Limited Warranty: Lifetime
