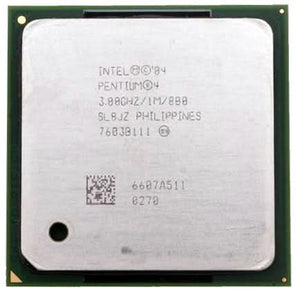

Intel JM80547PG0801M Pentium 4 530J 3GHz FSB800MHz 1MB LGA775 Tray

The Intel Pentium 4 processor on 90 nm process in the 775-land package is a follow on to the Pentium 4 processor in the 478-pin package with enhancements to the Intel NetBurst microarchitecture. The Pentium 4 processor on 90 nm process in the 775-land package uses Flip-Chip Land Grid Array (FC-LGA4) package technology, and plugs into a 775-land LGA socket, referred to as the LGA775 socket. The Pentium 4 processor in the 775-land package, like its predecessor, the Pentium 4 processor in the 478-pin package, is based on the same Intel 32-bit microarchitecture and maintains the tradition of compatibility with IA-32 software.

Key Features

Clock Speed 3 GHz
CPU Socket Type LGA775 Socket
TDP 84 W
Processor Quantity 1
Product Type Processor

Cache Memory

Level 1 Size 8 KB
Installed Size L2 Advanced Transfer Cache - 1 MB
Type Advanced Transfer Cache

Expansion / Connectivity

Compatible Slots 1 x processor - LGA775 Socket

Other Features

Bus Speed 800 MHz
Manufacturing Process 90 nm
Architecture Features Hyper-Threading Technology, streaming SIMD extensions 3
Platform Compatibility PC
Packaging Type FC-LGA4
