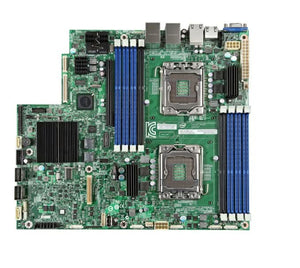

Intel DBS2400EP2 / S2400EP2 Chipset-Intel C600-A Socket-LGA1356 128Gb DDR3-800MHz SSI CEB Server Motherboard

IntelSKU: 869102
Model Number: DBS2400EP2
Alt. Part Number: S2400EP2
Condition: New Retail
No reviews

Price:
Sale price$512.00

Description

Overview

The Intel® Server Board S2400EP family supports dual Intel® Xeon® processors E5-2400 with 8 DIMMs, 6-channel native DDR-3 support, and a healthy storage capability with 10 onboard SATA and 2 mini-SAS. The Intel Server Board S2400EP family comes in an industry standard SSI CEB form factor, long-life roadmap support, and the availability of short chassis length barebone systems. The Intel Server Board S2400EP product family is designed for high-density rack-optimized deployments, either in value data centers or in embedded applications.


Technical Description

Chipset Manufacturer:     Intel
Chipset Model:     C602-A
Total Processor Supported:     2
Processor Technology:     Virtualization Technology
Processor Technology:     Trusted Execution Technology
Processor Socket:     Socket B2 LGA-1356
Processor Supported:     Xeon
64-bit Processing:     Yes
Number of Memory Slots:     8
Memory Form Factor:     DIMM
Memory Form Factor:     UDIMM
Memory Form Factor:     RDIMM
Memory Form Factor:     LRDIMM
Maximum Memory:     128 GB
Memory Standard:     DDR3-1600/PC3-12800
Memory Standard:     DDR3-1333/PC3-10600
Memory Standard:     DDR3-1066/PC3-8500
Memory Standard:     DDR3-800/PC3-6400
Memory Technology:     DDR3 SDRAM
Controller Type:     Serial ATA/600
Controller Type:     Serial ATA/300
RAID Supported:     Yes
RAID Levels:     0
RAID Levels:     1
RAID Levels:     5
RAID Levels:     1+0
Onboard Video:     On-board Video Chipset
Graphics Controller Manufacturer:     Intel
Graphics Controller Model:     ServerEngines Pilot III
Graphics Controller Memory:     16 MB
Graphics Memory Technology:     DDR3 SDRAM
Gigabit Ethernet:     Yes
Number of Total Expansion Slots:     1
Number of PCI Slots:     No
PCI Express Standard:     PCI Express 3.0
Total Number of PCI Express Slots:     1
Number of PCI Express x4 Slots:     0
Number of PCI Express x8 Slots:     0
Number of PCI Express x16 Slots:     1
Total Number of USB Ports:     4
Number of USB 2.0 Ports:     4
Serial Port:     Yes
Audio Line In:     No
Audio Line Out:     No
Microphone Port:     No
VGA:     Yes
Network (RJ-45):     Yes
Number of Network (RJ-45) Ports:     2
Number of SATA Interfaces:     10
Number of SAS Interfaces:     0
Total Number of Onboard USB Ports:     2
Number of Onboard USB 2.0 Ports:     2
Form Factor:     SSI CEB
Width:     12.0"
Depth:     10.5"



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
