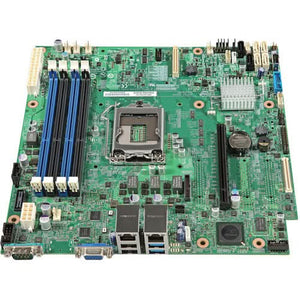

Intel DBS1200V3RPO Chipset-C224 Socket-LGA1150 32Gb DDR3L-1600MHz Rack-Mountable Micro-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The DBS1200V3RPO Intel Server Motherboard from Intel is a general purpose, single socket board supporting an Intel Xeon E3 processor and four DIMMs. It is equipped with two USB 2.0 and two USB 3.0 ports, six SATA ports, two LAN ports, and one LGA 1150 socket. These hardware features are accompanied by a 32GB maximum memory capacity with a maximum memory bandwidth of 25.6 GB/s, ensuring fast, efficient flow of data. This server motherboard also features integrated graphics support with a VGA output. Expansion options include PCIe x8 generation three slot and an I/O expansion module to easily connect compatible peripherals.
Specifications
Model Number:DBS1200V3RPO
Brand:Intel
Alt. Part Number(s):S1200V3RPO
Product Type: Motherboard
Technical Description
Brand: Intel
Model:DBS1200V3RPO
Socket: LGA 1150
Sockets Supported:4 UDIMM
Max Memory Size:32 GB (dependent on memory type)
Memory Type:DDR3L ECC UDIMM 1333/1600 MT/s
Number of Memory Channels:2*
Graphics Output:VGA
Total Displays Supported:1
Chipset:Intel C224
PCIe Revision:3.0
Maximum Number of PCIe Lanes: 16
PCIe Support: PCIe x8 Gen 3:1
Connector for I/O Expansion Module:1
Connector for Integrated RAID Module:1
USB Revision: USB 3.0
Number of USB 2.0 Ports:2
Number of USB 3.0 Ports:2
SATA Ports:6
Output Voltage:208 - 230 V AC
Protocols:Web, SNMP, Telnet
Form Factor:Micro-ATX
