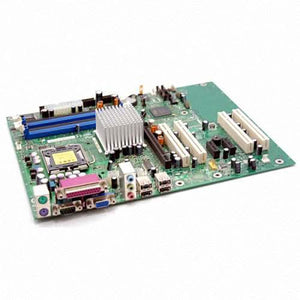

Intel (D915GAV) LGA775 ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
The Intel Desktop Board D915GAV supports the Intel Pentium 4 processors featuring Hyper-Threading Technology and is designed to optimize a broad range of usage models at home and in the office. This desktop board features Intel High Definition Audio, PCI Express expansion slots, and Intel PRO 10/100 LAN (optional). In addition, this desktop board delivers exceptional platform flexibility with both PCI Express x16 graphics and Intel Graphics Media Accelerator 900, and support for dual-channel DDR400 memory. FEATURES Support for the Intel Pentium 4 processor with Hyper-Threading in the LGA775 socket with an 800 MHz system bus; Supports boxed Intel desktop processors with packaging designated by 04B or 04A; Four 184-pin DIMM connectors supporting up to four double-sided DIMMs; DDR400/333 SDRAM memory; Designed to support up to 4 GB2 of system memory; Intel Graphics Media Accelerator 900; PCI Express x16 connector (with integrated retention mechanism) provides enhanced bandwidth for next-generation graphics card technology and future headroom.
Specifications
| Model | D915GAV |
| MPN | BOXD915GAV, LAD915GAV |
| UPC | 0735858166188 |
| Key Features | |
| Product Type | Motherboard |
| Form Factor | ATX |
| Width | 12 in. |
| Depth | 9.6 in. |
| CPU Type | Celeron D, Pentium 4, Pentium 4 Extreme Edition |
| Chipset Type | Intel 915G Express |
| Storage Controllers | ATA-100, Serial ATA-150 |
| Power Connectors | 24-pin main power connector, 4-pin ATX12V connector |
| Memory | |
| Supported RAM Technology | DDR SDRAM, DDR2 SDRAM |
| Supported RAM Integrity Check | Non-ECC |
| Audio | |
| Audio Output Type | Sound card |
| Telecom / Networking | |
| Networking Type | Ethernet |
| Features | |
| Sleep / Wake Up Features | Keyboard wake up |
| Hardware Features | Chassis intrusion detection |
| Hardware Monitoring | CPU core temperature |
| Expansion / Connectivity | |
| Additional Connectors | 4 x Hi-Speed USB |
