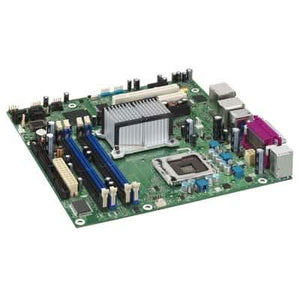

Intel Motherboard BLKD945GTPLR LGA775 1066 800FSB 4DDR2 Aud Vdo Lan SATA RAID MA

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom
Intel Motherboard BLKD945GTPLR LGA775 1066 800FSB 4DDR2 Aud Vdo Lan SATA RAID MA

Intel Motherboard BLKD945GTPLR LGA775 1066 800FSB 4DDR2 Aud Vdo Lan SATA RAID MA

Price:
$159.00
IntelSKU: 15990
Model Number: BLKD945GTPLR
Condition: New
In stock:  Yes
Quote
No reviews

For Volume / Bulk Purchase Discounts Available

Shop with confidence! Saitech Inc is an authorized Intel Partner Reseller.

Learn more by visiting the manufacturer's website.

Manufacturer's Website

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.

Description

The Intel Desktop Board D945GTP delivers new levels of performance and flexibility to the Digital Office and Digital Home. Based on the Intel 945G Express Chipset, this board supports dual-core processing, Intel EM64T and advanced Intel GMA 950 on-board or PCI Express Graphics.

BOXD945GTPLR Specifications

Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     945G
  • Total Processor Supported:     1
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket T LGA-775
  • Processor Supported:     Pentium 4
  • Processor Supported:     Pentium D
  • Processor Supported:     Celeron D
  • Front Side Bus:     533 MHz
  • Front Side Bus:     800 MHz
  • Front Side Bus:     1066 MHz

Memory

  • Number of Memory Slots:     4
  • Maximum Memory:     4 GB
  • Memory Standard:     DDR2-400/PC2-3200
  • Memory Standard:     DDR2-533/PC2-4200
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Technology:     DDR2 SDRAM

I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA
  • Controller Type:     Ultra ATA/100 (ATA-6)

Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     Intel
  • Graphics Controller Model:     GMA 950

Audio

  • Sound Controller Manufacturer:     SigmaTel
  • Sound Controller Model:     9223
  • Audio Channels:     7.1

Network & Communication

  • Fast Ethernet:     Yes

I/O Expansions

  • Number of Total Expansion Slots:     4
  • Number of PCI Slots:     2
  • Total Number of PCI Express Slots:     2
  • Number of PCI Express x1 Slots:     1
  • Number of PCI Express x16 Slots:     1

Interfaces/Ports

  • Total Number of USB Ports:     4
  • Number of USB 2.0 Ports:     4
  • Total Number of FireWire/i.LINK Ports:     1
  • Number of FireWire/i.LINK 400 Ports:     1
  • Parallel Port:     Yes
  • Serial Port:     Yes
  • Audio Line In:     Yes
  • Audio Line Out:     Yes
  • Microphone Port:     Yes
  • S/PDIF:     Yes
  • Number of S/PDIF Out Ports:     1
  • VGA:     Yes
  • Network (RJ-45):     Yes

Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     4
  • Total Number of Onboard USB Ports:     2
  • Total Number of Onboard FireWire/i.LINK Ports:     2
  • Onboard LEDs Header:     Yes
  • Onboard Audio Header:     Yes

Power Description

  • Power Supply Supported:     ATX12V

Physical Characteristics

  • Width:     9.6"
  • Depth:     9.6"

Miscellaneous

  • Package Contents:
  • 1 x D945GTP Desktop Board
  • 2 x Serial ATA Cable
  • 1 x I/O Shield
  • Additional Information:

    System Memory:

  • Serial Presence Detect

  • Chipset:

  • Intel 945G Chipset, consisting of:
    • Intel 82945G Graphics Memory Controller Hub (GMCH)
    • Intel 82801G I/O Controller Hub (ICH7R)
    • 4 MBit Firmware Hub (FWH)
  • Certifications & Standards:

    Safety Regulations:

  • UL 60950-1:2003/ CSA C22.2 No. 60950-1-03 (USA and Canada)
  • EN 60950-1:2002 (European Union)
  • IEC 60950-1:2001 (International)

  • EMC Regulations:

  • FCC (Class B) (USA)
  • ICES-003 (Class B) (Canada)
  • EN55022: 1998 (Class B) (European Union)
  • EN55024: 1998 (European Union)
  • AS/NZS 3548 (Class B) (Australia and New Zealand)
  • CISPR 22, 3rd Edition (Class B) (International)
  • CISPR 24: 1997 (International)
  • VCCI (Class B) (Japan)

Warranty

  • Limited Warranty:     3 Year
