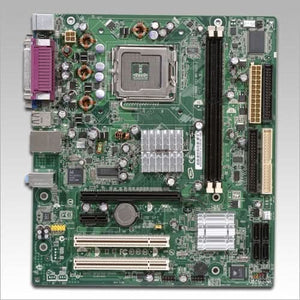

The Intel Desktop Board D101GGC delivers an integrated graphics solution for your next value platform. The Intel Desktop Board D101GGC supports the Intel Pentium D Processor, the Intel Pentium 4 Processor with Hyper-Threading Technology and the Intel Celeron D processor in the LGA775 package. This Micro-ATX board delivers both quality and value by offering features such as Intel High Definition Audio and Realtek 8101L 10/100 LAN. This desktop board also features PCI Express x16, DDR 400, 333 memory, and 8 USB 2.0 ports.
BLKD101GGCL Specifications
Processor & Chipset
- Chipset Manufacturer: ATI
- Chipset Model: Radeon Xpress 200
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket T LGA-775
- Processor Supported: Pentium 4
- Processor Supported: Pentium D
- Processor Supported: Celeron D
- Front Side Bus: 533 MHz
- Front Side Bus: 800 MHz
Memory
- Number of Memory Slots: 2
- Maximum Memory: 2 GB
- Memory Standard: DDR333/PC2700
- Memory Standard: DDR400/PC3200
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
- Controller Type: Ultra ATA/133 (ATA-7)
Audio
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC861
- Audio Channels: 5.1
Network & Communication
- Fast Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 4
- Number of PCI Slots: 2
- Total Number of PCI Express Slots: 2
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 4
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
