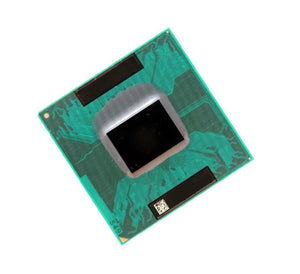

Intel Mobile Processor Dual Core T2300 1.66 GHz 667 Mhz 2MB CPU

The Intel® Core™ Duo processors are members of Intel's growing product line of multi-core processors. These dual-core processors combine the benefits of two high-performance execution cores with intelligent power management features to deliver significantly greater performance per watt over previous Intel® processors. Intel's 65nm process technology makes it possible to integrate two cores, along with many advanced features, in one physical package.

• Two complete execution cores in one processor package provide advancements in simultaneous computing such as multi-threaded applications and multi-tasking environments. Dual-core processing efficiently delivers performance while balancing power requirements.
• Two execution cores share a high-performance, power-optimized 667 MHz front-side bus to access the same system memory. To save power, address and data buffers are turned off when there is no activity.
• Enhanced Intel SpeedStep® technology allows a system to dynamically adjust processor voltage and core frequency, decreasing average power consumption and average heat production.
• Intel® Smart Cache Design allows two execution cores to share 2 MB of L2 cache, reducing FSB traffic and enhancing system responsiveness.
• Fully code compatible with existing Intel Architecture-based 32-bit application software.

Product Specification:
Model	Core Duo T2300 BX80539T2300/BX80539T2300E
Core	Yonah
Processor Frequency	1.66 GHz
Package Type	FCPGA 478-Pin
Bus Speed	667 MHz
L2 Cache Size	2 MB
L2 Cache Speed	1.66 GHz
Core Voltage	Variable
Thermal Guideline	31.0W
Thermal Spec	100°C
Manufacturing Technology	65 nm
Bus/Core Ratio	10
