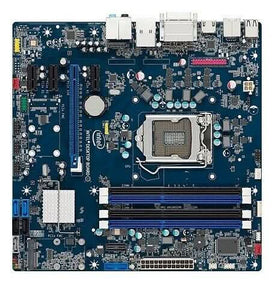

Intel BLKDH77EB Chipset-H77 LGA-1155 DDR3 Micro ATX Motherboard

Specifications

Model Number:  BLKDH77EB

Brand:  Intel

Alt Part Number:  DH77EB

Type:  Motherboard



Technical Description

Brand:  Intel

Model:  BLKDH77EB

Board Form Factor:  Micro ATX

Socket:  LGA1155

Max Memory Size:  32Gb (dependent on memory type)

Memory Types:  Dual DDR3-1600/1333/1066

Memory Channels:  2

Total DIMMs:  4

Integrated Graphics:  Yes

Graphics Output:  HDMI DP DVI-I

Intel® Clear Video Technology:  Yes

Dual Display Capable:  Yes

Discrete Graphics:  1 PCIe 3.0 x16

PCIe x1 Gen 2.x:  3

PCIe x16 Gen 2.x:  1

PCIe Mini Card Slot (Full Length):  1

USB Ports:  14

USB 2.0 Configuration:  (Back + Internal): 4,6

USB 3.0 Configuration:  (Back + Internal): 2,2

Total SATA Ports:  5

SATA 6.0 Gb/s Ports:  2

eSATA Ports:  1

RAID Configuration:  0,1,5,10

PATA Ports:  0

Parallel Ports:  1

Parallel Port via Internal Header:  Yes

Serial Ports:  1

Serial Port via Internal Header:  Yes

Audio:  (back channel + front channel): 8,2

Integrated LAN:  10/100/1000



Features

Consumer Infrared Headers

Single S/PDIF Out Connector

Max CPU Configuration:  1

Energy Star

Intel® HD Audio Technology

Intel® Rapid Storage Technology
