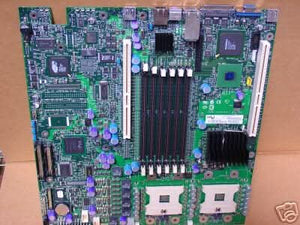

Intel E-ATX Dual XEON Socket 604 E7501 DDR U320 GETH Motherboard
Roll over image to zoom in Click on image to zoom
Intel E-ATX Dual XEON Socket 604 E7501 DDR U320 GETH Motherboard

Intel E-ATX Dual XEON Socket 604 E7501 DDR U320 GETH Motherboard

Price:
$249.00
IntelSKU: 50079
Model Number: SE7501WV2SCSI
Condition: OEM Bulk
In stock:  Yes
No reviews

For Volume / Bulk Purchase Discounts Available

Shop with confidence! Saitech Inc is an authorized Intel Partner Reseller.

Learn more by visiting the manufacturer's website.

Manufacturer's Website

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.

Description

The Intel Server Board SE7501WV2 is rack-optimized with features making it uniquely suited for 1U and 2U systems. For example, adapter-slot locations allow for one full-height and one low-profile PCI add-in card in a 1U system, or three full-height and three low-profile cards in a 2U system. The Server Board SE7501WV2 accommodates up to two Intel Xeon processors with 512KB L2 Advanced Transfer Cache and Hyper-Threading Technology. Multiple integrated components provide dual PCI-X buses, dual Intel PRO/1000 MT Server Network Connections, and up to12 GB of Error-Correcting Code (ECC) DDR memory support. All component locations and design are thermally optimized for high-density systems.

SE7501WV2SCSI Specifications

    Processor & Chipset

  • Chipset Manufacturer:     Intel
  • Chipset Model:     E7501
  • Total Processor Supported:     2
  • Processor Technology:     Hyper-Threading Technology
  • Processor Socket:     Socket PGA-604
  • Processor Supported:     Xeon
  • Front Side Bus:     400 MHz
  • Front Side Bus:     533 MHz

    Memory

  • Number of Memory Slots:     6
  • Maximum Memory:     12 GB
  • Memory Standard:     DDR266/PC2100
  • Memory Standard:     DDR200/PC1600
  • Memory Technology:     DDR SDRAM

    I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Ultra320 SCSI
  • Controller Type:     Ultra ATA
  • RAID Supported:     Yes
  • RAID Levels:     0
  • RAID Levels:     1
  • RAID Levels:     1+0
  • RAID Levels:     5

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     ATI
  • Graphics Controller Model:     Rage-XL
  • Graphics Controller Memory:     8 MB

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     3
  • Number of PCI Slots:     1
  • Number of PCI-X Slots:     2

    Interfaces/Ports

  • Total Number of USB Ports:     2
  • Parallel Port:     Yes
  • Serial Port:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     2
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Width:     12.0"
  • Depth:     13.0"

    Miscellaneous

  • Package Contents:
  • One Intel Server Board SE7501WV2
  • Quick Start User Guide
  • PS/2 cable
  • SSI Thin E-Bay compliant I/O shield with attached EMI gasket
  • Board-configuration label
  • CD-ROM Includes:
    • Intel SMaRT
    • Tool Software
    • Server product information
    • Technical documentation
    • Customer support information
    • Drivers
    • Utilities
    • Web links
    • Intel Server Management
  • Additional Information:

    Fully Validated Operating Systems:

  • Microsoft Windows 2000 Advanced Server
  • Red Hat Linux8
  • SuSE Enterprise Server 8
  • Novell NetWare 6

    • Special Features:

  • Multilingual support
  • Enabled for Rolling/Online BIOS updates

    • Configuration Utilities:

  • SystemSetup Utility (SSU) for easy system setup of BIOS utilities
  • Triple-peer PCI buses
  • Up to six slots on risers in a 2U system
  • Certifications & Standards:

    Safety Compliance:

  • UL/CUL 950-CSA 950 (UL Recognition Mark) - (Canada)
  • EN60950 - (Europe/Russia)
  • CE Mark-EU Directive 73/23/EEC - (Europe/Russia)
  • GOST-R Mark - (Europe/Russia)
  • IEC60950 - (International)
  • UL/CUL 950-CSA 950 (UL Recognition Mark) - (United States)

    • EMI Verification:

  • Verified to AS/NZS 3548, Class A (C-tick Mark) - (Australia/New Zealand)
  • Verified to ICES-003, Class A - (Canada)
  • Verified to EN55022 (Class A) and EN55024 (CE Mark-EU Directive 89/336/EEC) - (Europe)
  • Verified to CISPR-22/VCCI, Class A - (International)
  • Verified to CISPR-22/VCCI, Class A - (Japan)
  • RRL Certification to MIC Notices 1997-41 & 1997-42 - (Korea)
    • Verified to GOSTR 29216-91, GOSTR 50628-95 (GOST-R Mark) - (Russia)
  • Verified to BSMI 13438, Class A (DOC) - (Taiwan)
  • Verified to FCC, Class A - (United States)

    Warranty

  • Limited Warranty:     3 Year
