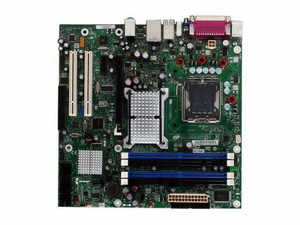

Intel DQ965GFEKR Q965 Express LGA775 Socket 1066MHZ DDR2 SATA(Raid) Micro-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Specifications
Model Number: DQ965GFEKR
Brand: Intel
Alt Part Number(s): DQ965GF
Type: Motherboard
Technical Description
Brand: Intel
Model: DQ965GFEKR
Socket Type: LGA 775
CPU Type: Core 2 Duo / Pentium D / Celeron D
FSB: 1066/800MHz
Supported CPU Technologies: Hyper-Threading Technology
Chipset: Intel Q965 Express, Intel ICH8DO
Number of Memory Slots: 4×240pin
Memory Standard: DDR2 800
Max Memory Supported: 8GB
Channel Supported: Dual Channel
PCI Express x16: 1
PCI Express x1: 1
PCI Slots: 2
PATA: 1 x ATA100 2 Dev. Max
SATA 3Gb/s: 6
SATA RAID: 0/1/0+1/5 Matrix RAID
Video Chipset: Intel GMA 3000
Audio Chipset: SigmaTel STAC9227
Audio Channels: 6 Channels
LAN Chipset: Intel 82566DM
Max LAN Speed: 10/100/1000Mbps
PS/2: 2
LPT: 1
Video Ports: D-Sub
USB 1.1/2.0: 6 x USB 2.0
IEEE 1394: 1 x IEEE 1394a
Audio Ports: 3 Ports
Onboard USB: 2 x USB 2.0 connectors support 4 ports
Onboard 1394: 1 x 1394a connector supports 1 port
Form Factor: Micro ATX
Windows Vista: Certified for Windows Vista
Power Pin: 24 Pin
*
