Description
Specifications

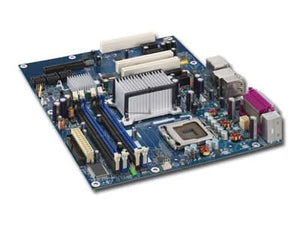

Model Number: DG965WHMKR
Brand: Intel
Alt. Part Number(s): DG965WHMKR
Product Type: Motherboard
Note: Refurbished Motherboard with Backplate Only.
Technical Description
Brand: Intel
Model: DG965WHMKR
CPU Socket Type: LGA 775
CPU Type: Core 2 Duo / Pentium D / Celeron D
FSB: 1066/800MHz
Supported CPU Technologies: Hyper-Threading Technology
Chipset: Intel G965 Express, Intel ICH8R
Number of Memory Slots: 4×240pin
Memory Standard: DDR2 800
Maximum Memory Supported: 8GB
Channel Supported: Dual Channel
PCI Express x16: 1
PCI Express x1: 3
PCI Slots: 3
PATA: 1 x ATA100 2 Dev. Max
SATA 3Gb/s: 6
SATA RAID: 0/1/0+1/5 Matrix RAID
Onboard Video Chipset: Intel GMA X3000
Audio Chipset: SigmaTel STAC9271D
Audio Channels: 8 Channels
LAN Chipset: Intel 82566DC
Max LAN Speed: 10/100/1000Mbps
PS/2 Ports: 2
LPT Ports: 1
Video Ports: D-Sub
USB 1.1/2.0: 6 x USB 2.0
IEEE 1394: 1 x IEEE 1394a
S/PDIF Out: 1 x Optical
Audio Ports: 5 Ports
Onboard USB: 4 x USB 2.0
Onboard 1394: 1 x 1394a
Form Factor: ATX
Dimensions (W x L): 11.6" x 9.6"
Windows Vista: Certified for Windows Vista
Power Pin: 24 Pin
Features
Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.
