Description

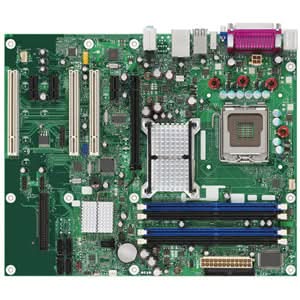

The Intel Desktop Board DG965RY Classic Series is built in the ATX form factor, supporting a range of processors including the Intel Core 2 Duo, Intel Pentium D and the Intel Pentium 4. This board can support up to 8 GB of dual channel DDR2 800/667/533 MHz SDRAM. It also offers up to two 1394a ports, Intel High Definition Audio with support for 5.1 surround sound, Intel PRO 10/100/1000 Network connection and ample USB connectors for all your computer paraphernalia.
BLKDG965RYCK Product Overview
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: G965 Express
- Total Processor Supported: 1
- Processor Socket: Socket T LGA-775
- Processor Supported: Core 2 Duo
- Processor Supported: Pentium D
- Processor Supported: Pentium 4
- Processor Supported: Celeron D
- Front Side Bus: 533 MHz
- Front Side Bus: 800 MHz
- Front Side Bus: 1066 MHz
Memory
- Number of Memory Slots: 4
- Maximum Memory: 8 GB
- Memory Standard: DDR2-533/PC2-4200
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-800/PC2-6400
- Memory Technology: DDR2 SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/133 (ATA-7)
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: GMA X3000
Audio
- Sound Controller Manufacturer: SigmaTel
- Sound Controller Model: STAC9227
- Audio Channels: 5.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 7
- Number of PCI Slots: 3
- Total Number of PCI Express Slots: 4
- Number of PCI Express x1 Slots: 3
- Number of PCI Express x16 Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 6
- Total Number of FireWire/i.LINK Ports: 1
- Number of FireWire/i.LINK 400 Ports: 1
- Parallel Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 4
- Total Number of Onboard USB Ports: 2
- Total Number of Onboard FireWire/i.LINK Ports: 1
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Physical Characteristics
- Width: 11.6"
- Depth: 9.6"
-
BIOS Features:
- SMBIOS
- Plug and Play
- Intel BIOS (resident in the SPI Flash device)
-
Hardware Monitor Subsystem
- Four fan headers
- Manageability Engine
- Thermal sense to detect out of range thermal values
- Three fan sense inputs used to monitor fan activity
- Intel Quiet System Technology implemented through the ICH8
- Support for Advanced Configuration and Power Interface (ACPI)
Warranty
- Limited Warranty: 3 Year
