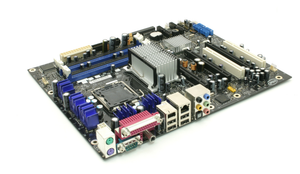

Intel BLKD975XBX2KR ATX Motherboard with Intel 975X Express Chipset Bare Motherboard

Specifications

Model Number:  BLKD975XBX2KR

Brand:  Intel

Alt. Part Number(s):  D975XBX2KR

Type:  Motherboard

NOTE:   Without Accessories



Technical Description

Brand:  Intel

Model:  BLKD975XBX2KR

CPU Socket Type:  LGA 775

CPU Type:  Core 2 Quad / Core 2 Extreme / Core 2 Duo

FSB:  1066/800MHz

North Bridge Chipset:  Intel 975X

South Bridge Chipset:  Intel ICH7R

Form Factor:  ATX

Dimensions:  12.0" x 9.6"

Power Pin:  24 Pin

Number of Memory Slots:  4×240pin

Memory Standard:  DDR2 800

Max Memory Supported:  8GB

Channel Supported:  Dual Channel

PCI Express x16:  3 (1 electrical x16 or x8, 1 electrical x8, 1 electrical x4)

PCI Slots:  2

SATA 3Gb/s:  8

Onboard Video Chipset:  None

Audio Channels:  8 Channels

Max LAN Speed:  10/100/1000Mbps

Audio Ports:  5 Ports

Onboard USB:  4 x USB 2.0

Onboard 1394:  1 x 1394a
