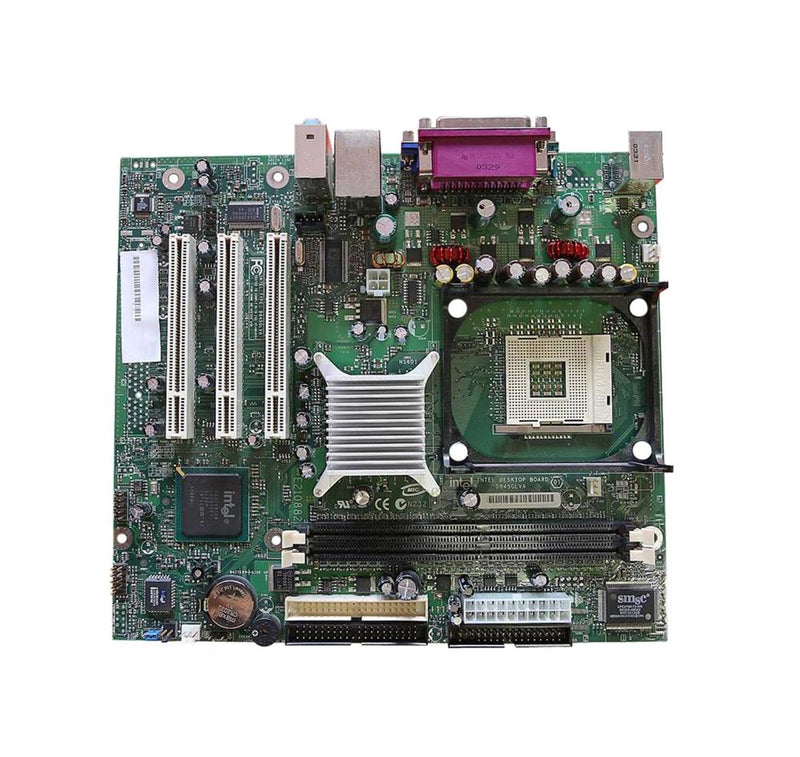

Intel D845GLVA Intel 845GL Socket-478 ATA-100 Micro ATX Motherboard

Specifications

Model Number:  D845GLVA

Brand:  Intel

Alt Part Number(s):  D845GLVA

Product Type:  Motherboard



Technical Description

Brand:  Intel

Model:  D845GLVA

Product Line:  Intel Desktop Board

Chipset Type:  Intel 845GL

Compatible Processors:  Celeron, Pentium 4

Processor Socket:  Socket 478

Max Bus Speed:  400 MHz

Max RAM Supported Size:  2 GB

RAM Technology:  DDR SDRAM

RAM Speed:  200 MHz, 266 MHz

Speed:  PC2100, PC1600

Expansion Slots:  1 x CPU , 2 x DIMM 184-pin (2.5 V) , 3 x PCI

Storage Interfaces:  ATA-100 -connectors: 2 x 40pin IDC

Data Link Protocol:  Ethernet, Fast Ethernet

Min Storage Temperature:  -40 °F

Max Storage Temperature:  158 °F

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  Micro ATX

Width:  9.2 in

Depth:  8.2 in



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
