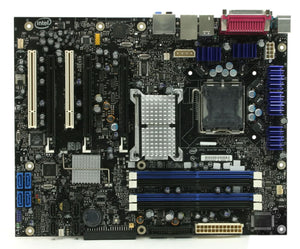

Intel BOXD975XBX2KR Chipset-975X LGA-775 DDR2 ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
| Specifications | |
| Model Number | BOXD975XBX2KR |
| Brand | Intel |
| Condition | New Retail |
| Alt. Part Number(s) | D975XBX2KR |
| Type | Motherboard |
| Technical Description | |
| Brand | Intel |
| Model | BOXD975XBX2KR |
| CPU Socket Type | LGA 775 |
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1066/800MHz |
| North Bridge Chipset | Intel 975X |
| South Bridge Chipset | Intel ICH7R |
| Form Factor | ATX |
| Dimensions | 12.0" x 9.6" |
| Windows Vista | Certified for Windows Vista |
| Power Pin | 24 Pin |
| Number of Memory Slots | 4×240pin |
| Memory Standard | DDR2 800 |
| Max Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 3 (1 electrical x16 or x8, 1 electrical x8, 1 electrical x4) |
| PCI Slots | 2 |
| PATA | 1 x ATA100 2 Dev. Max |
| SATA 3Gb/s | 8 |
| Onboard Video Chipset | None |
| Audio Channels | 8 Channels |
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
| Onboard 1394 | 1 x 1394a |
* | |
