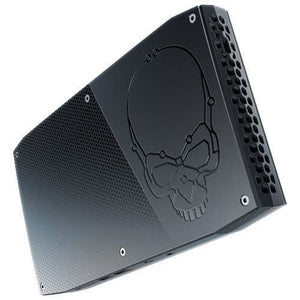

Intel BOXNUC6I7KYK1 Core i7-6770HQ 2.60Ghz DDR4 SDRAM Quad-Core UCFF NUC Kit
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Specifications
Mfr Part Number: BOXNUC6I7KYK1
Brand: Intel
Alt Part Number: BOXNUC6I7KYK
Type: NUC Kit
Technical Description
Brand: Intel
Model: BOXNUC6I7KYK1
Processor Type: 2.6 GHz Intel Core i7-6770HQ Quad-Core
Maximum Boost Speed: 3.5 GHz
Cache Memory: 6 MB
Max Memory Supported: 32GB
Memory Type Supported: DDR4 2133
Onboard Video: Intel Iris Pro 580
Memory slot: 2 x 260Pin SO-DIMM
Max LAN Speed: 10/100/1000Mbps
Wireless LAN: Intel Wireless-AC 8260
Bluetooth: Bluetooth 4.2
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: UCFF
Dimensions: 1.10" x 8.31" x 4.57"
Features
6th generation Intel Core i7-6770HQ processor
Intel Iris Pro Graphics
Two DDR4 SO-DIMM sockets (up to 32GB, 2133 MHz)
Two M.2 slots with flexible support for a 42 or 80 mm SATA or PCIe SSD
Intel Dual Band Wireless-AC 8260 and Bluetooth 4.2
Two USB 3.0 ports (including one charging port)
Intel HD Audio via Headphone/Microphone jack
Consumer infrared sensor
Support for user-replaceable third-party lids
Kensington lock support
Back panel DC power connector (19V)
Combo speaker / TOSLINK audio output
Intel Gigabit LAN
Two USB 3.0 ports on the back panel
One Mini DisplayPort version 1.2 supporting 8 channel digital audio (7.1 surround sound)
*
